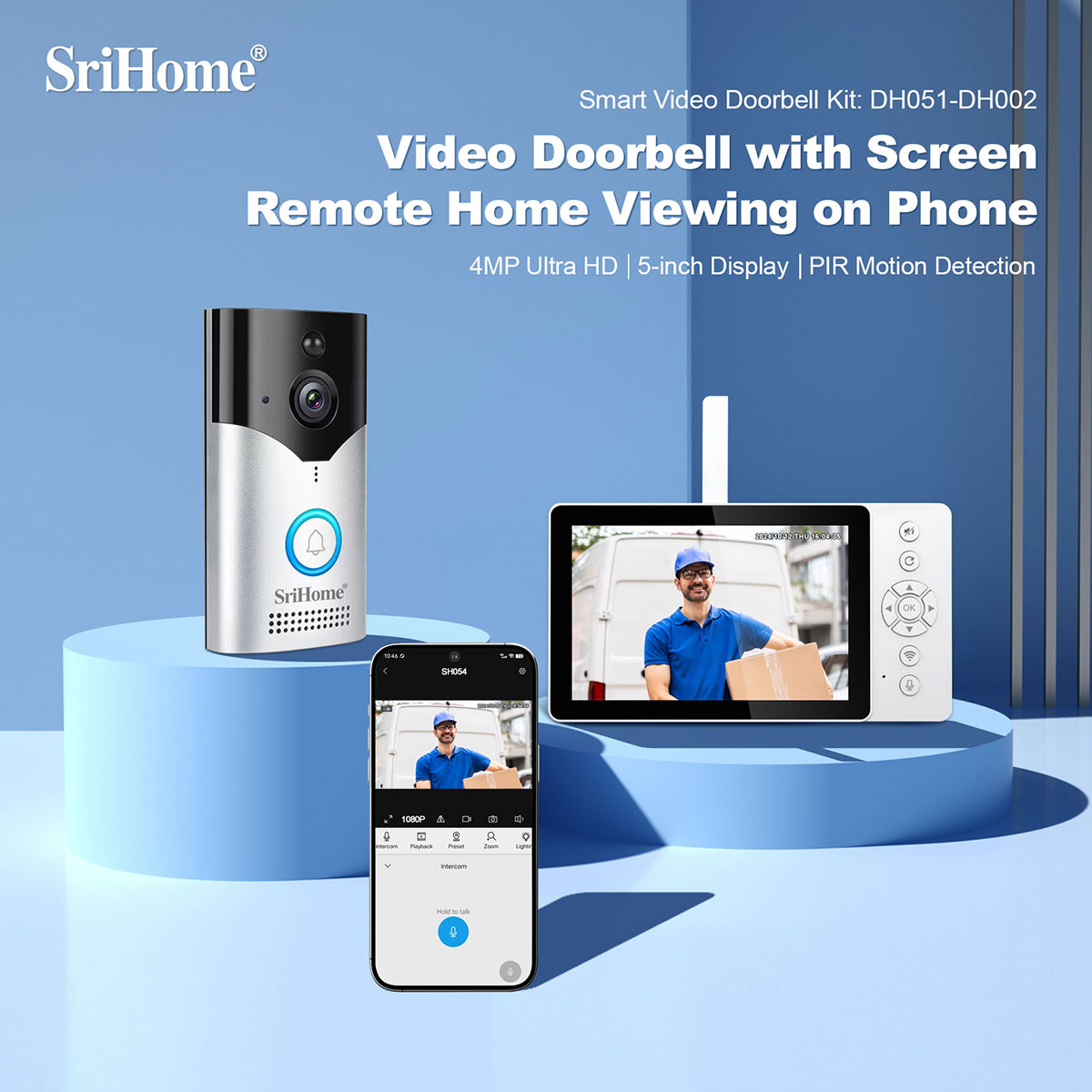

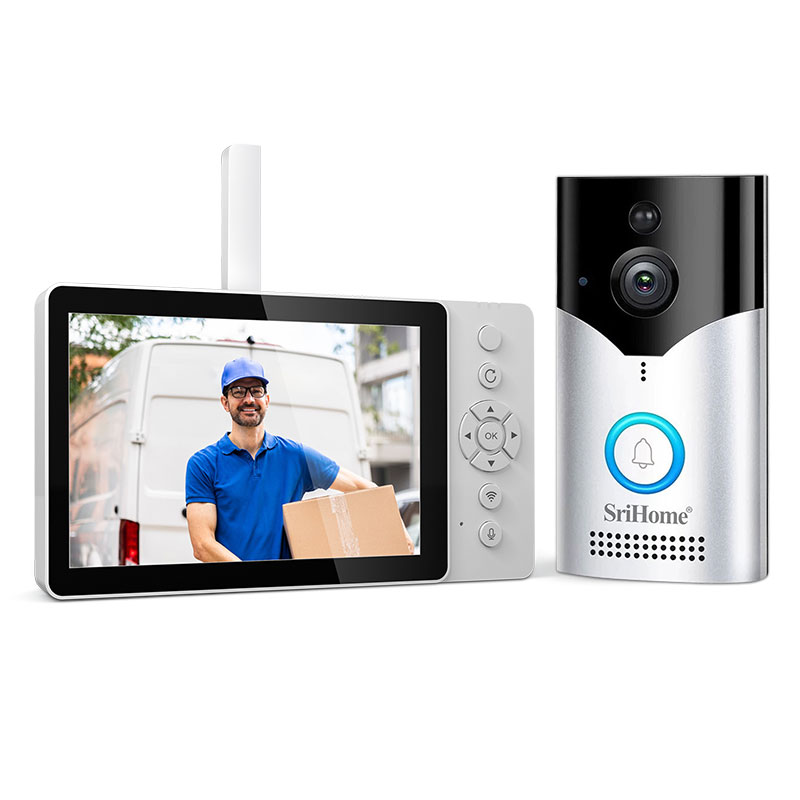

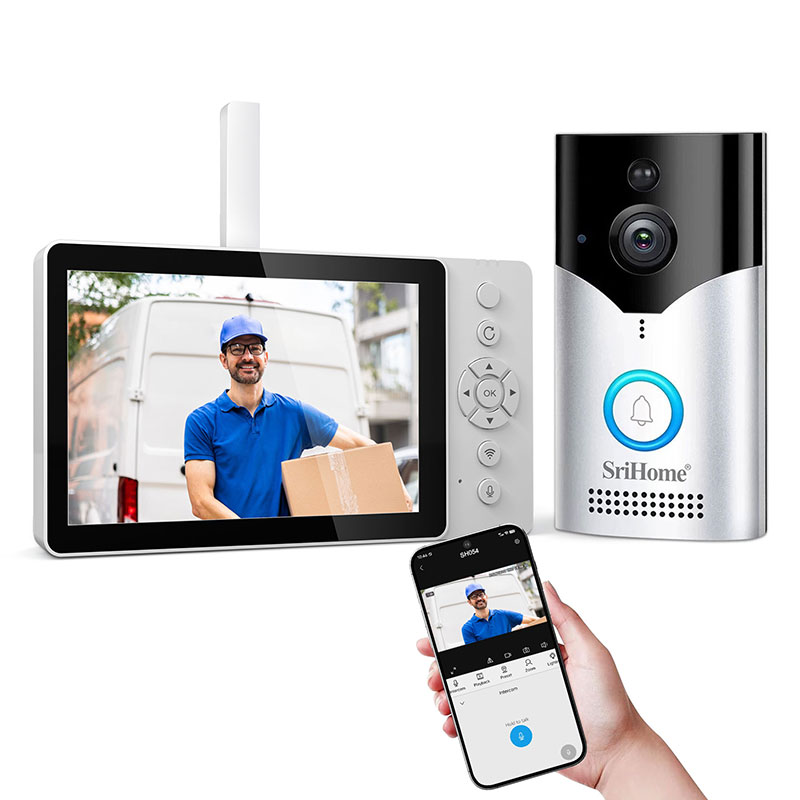

DH051-DH002

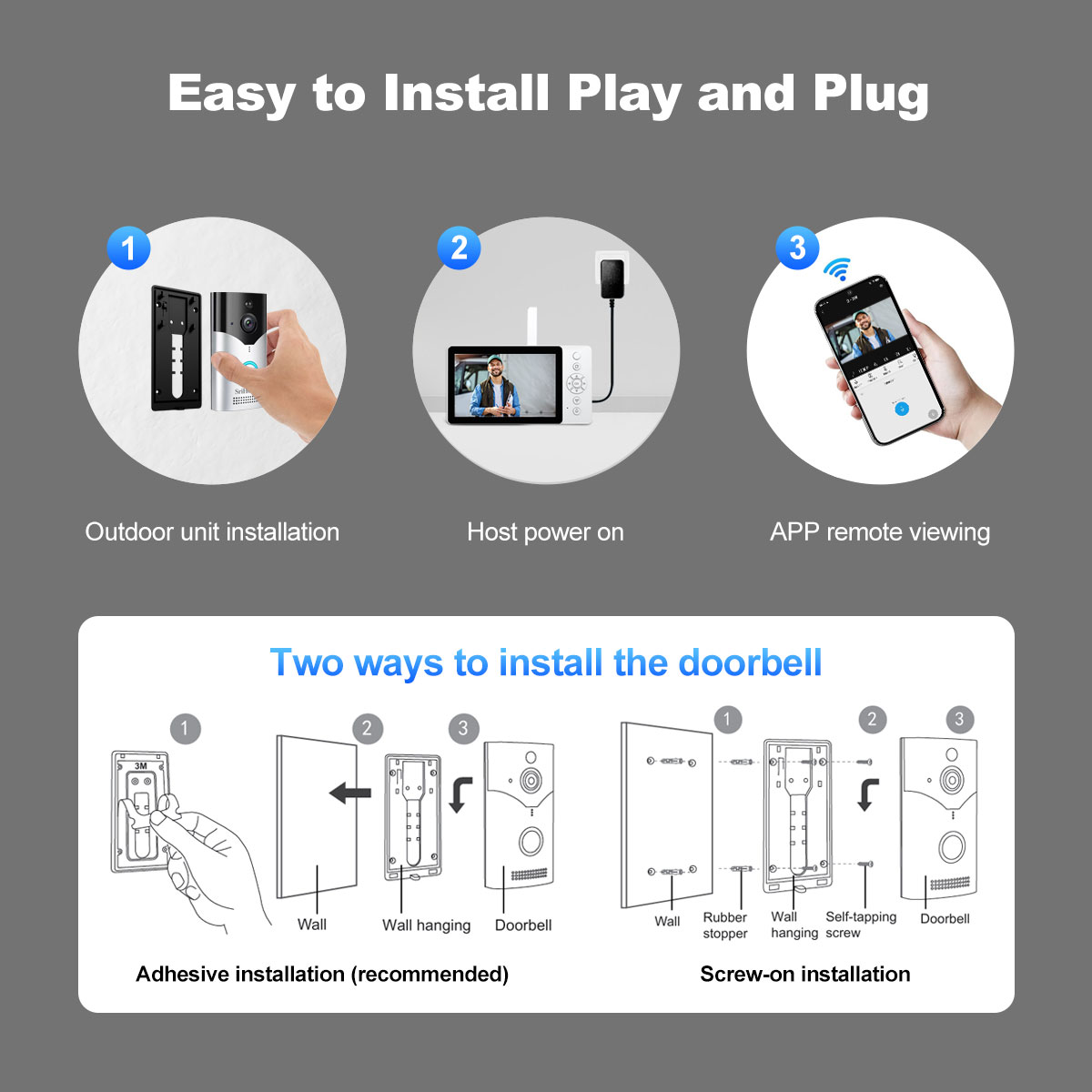

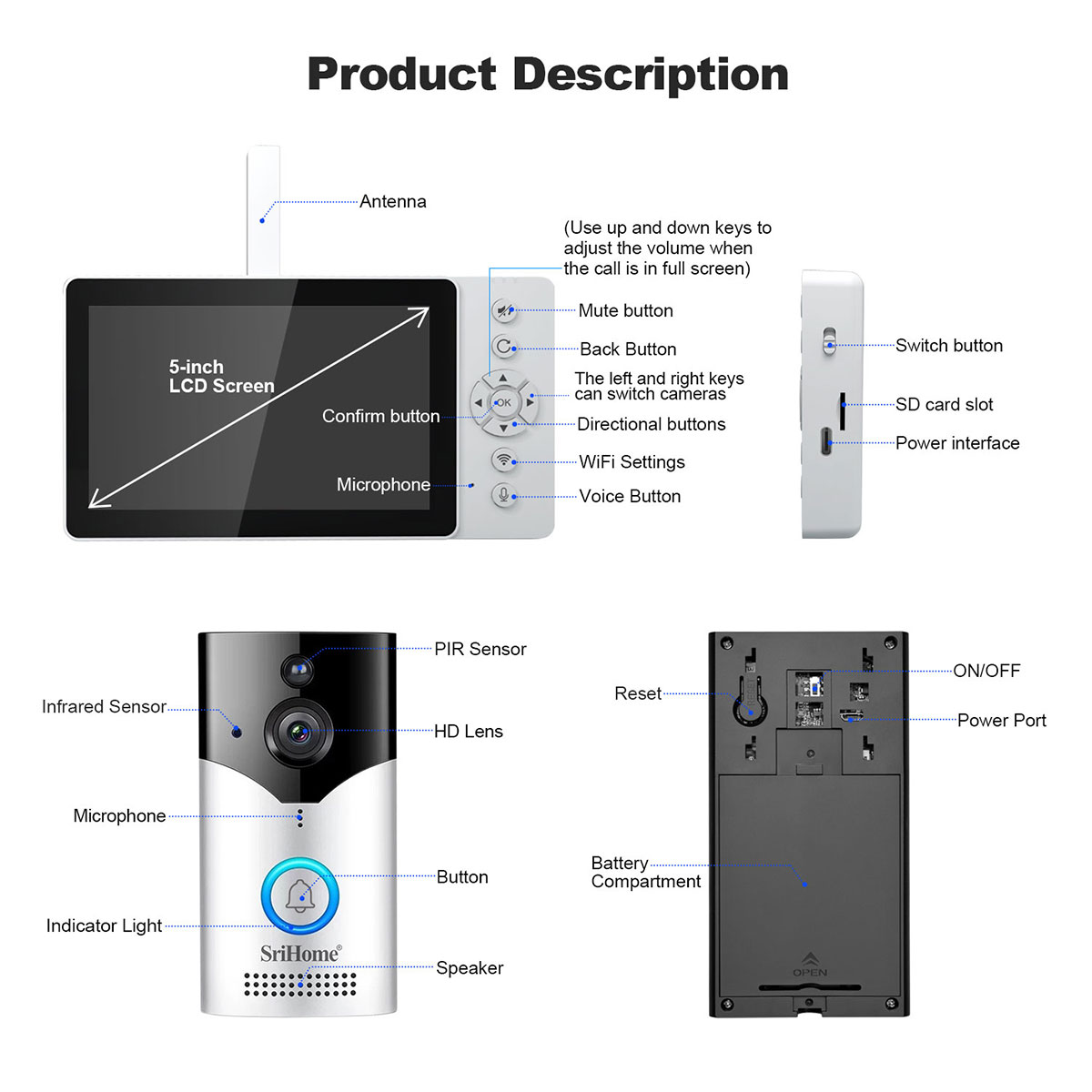

1: Easy to install, simple and easy to use

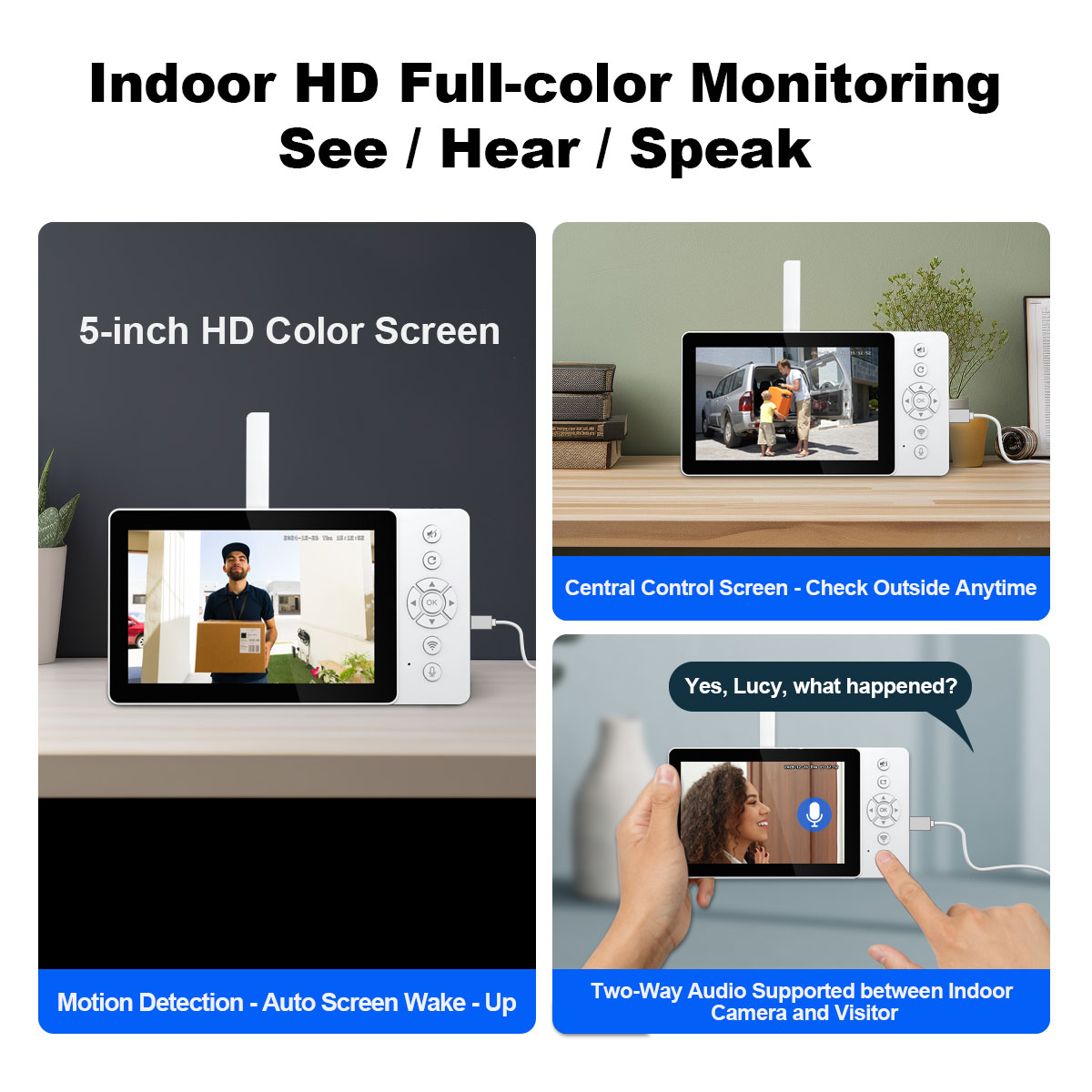

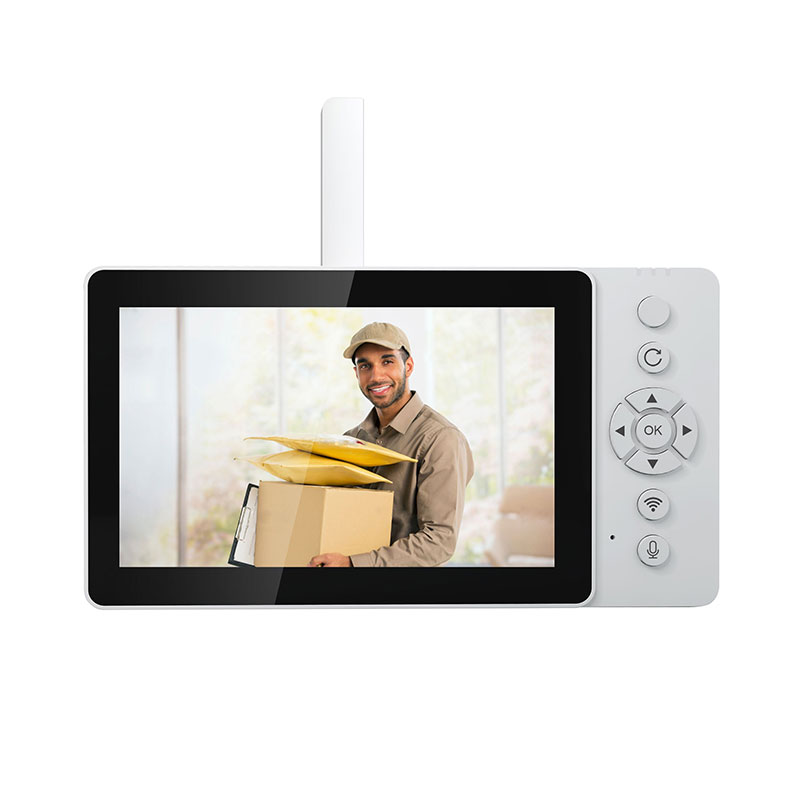

2: Home host: comes with a 5-inch high-definition display

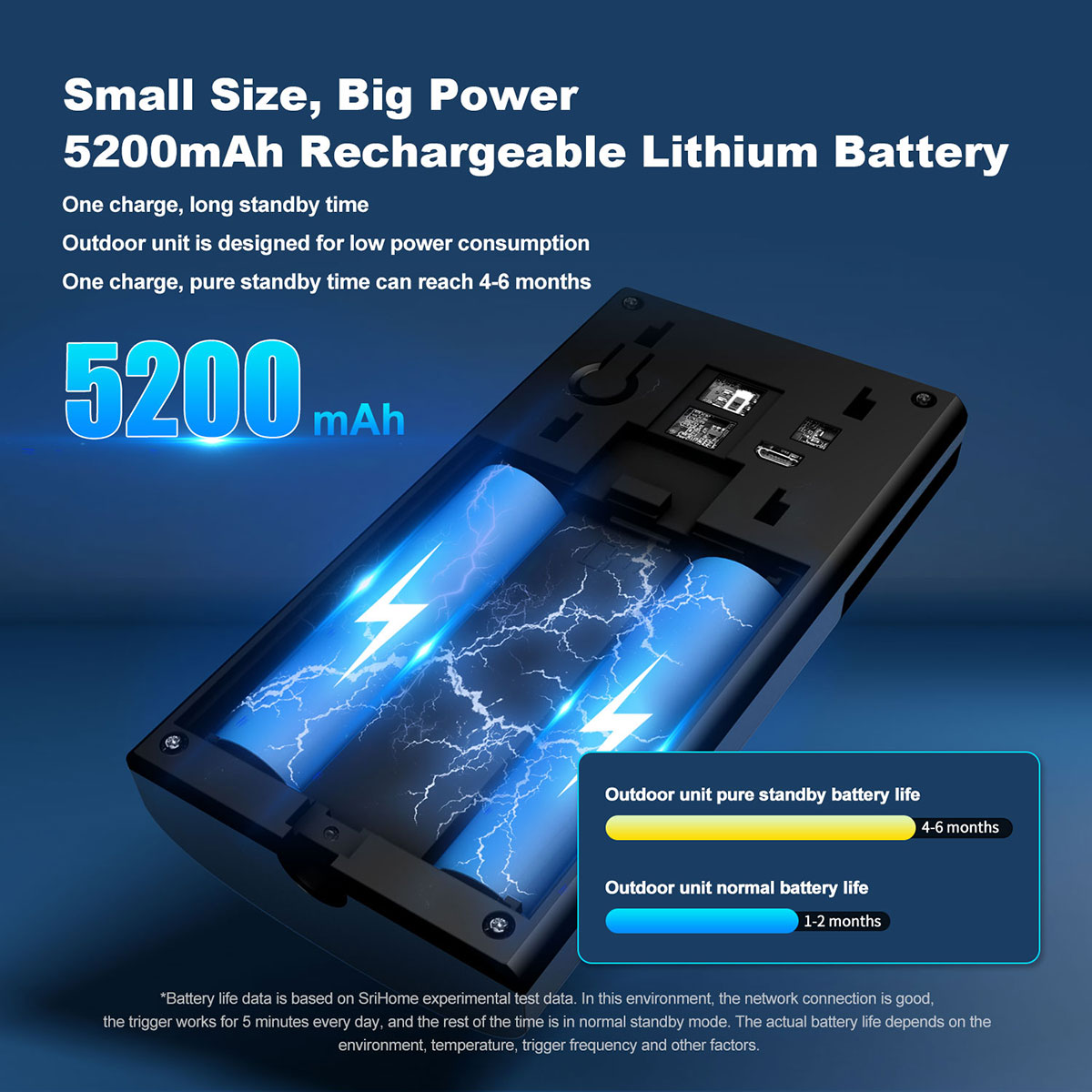

3: Low-power doorbell: ultra-low power consumption, ultra-long standby
4: Doorbell: supports 2 pointed 18650 batteries (standard 2)
5: Audio: two-way voice, built-in microphone and speaker, supports monitoring, intercom, simplex
6: Lens: 2.8mm lens, wide-angle lens, supports 3x electronic zoom
7: Night vision: supports high-definition infrared night vision
8: TF card storage: supports 128G TF Card, supports mobile phone video playback
9: Security access management: the system defaults to the first user as the administrator, and other users must be authorized by the administrator before accessing the camera
10: WiFi type: WiFi 6

DH051-DH002-01-EN DH051-DH002-02-EN DH051-DH002-03-EN DH051-DH002-04-EN DH051-DH002-05-EN DH051-DH002-06-EN DH051-DH002-07-EN DH051-DH002-08-EN DH051-DH002-09-EN DH051-DH002-10-EN DH051-DH002-11-EN DH051-DH002-12-EN DH051-DH002-13-EN DH051-DH002-14-EN

System	Main Processor：1G main frequency, 1.5T computing power high performance soc Operating System：linux
Display	Screen size：5 inches Resolution：720 x RGB x 1280 Touch：Not supported Turn off the Screen：The screen will automatically turn off when exiting the configuration interface
Video	Encoding Format：H.264 Maximum Resolution：4 Channels 1920*1080

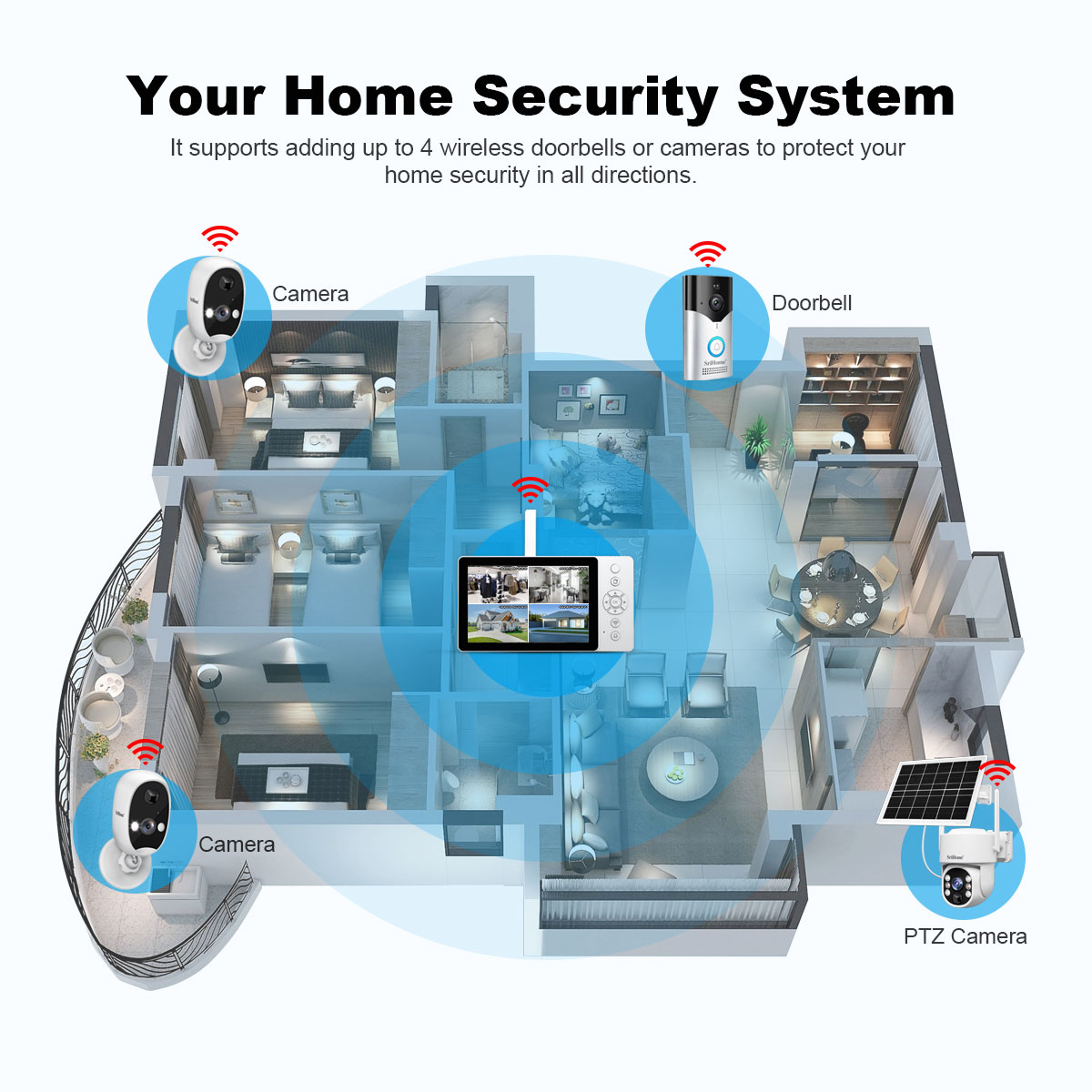

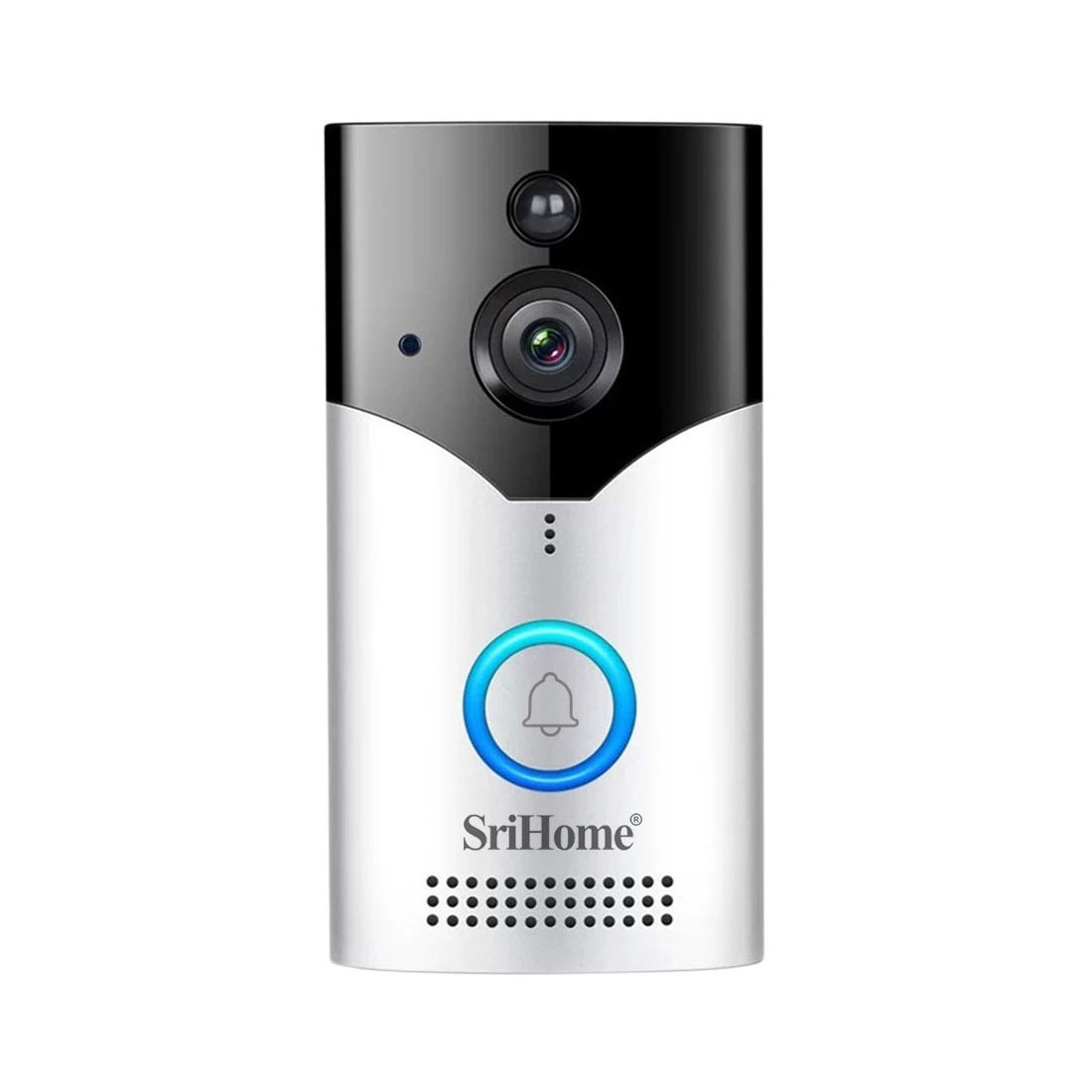

Terminal equipment Wireless Doorbell(DH002）	Doorbell：Supports Standard Battery Camera: Supports Optional Connection mode: WiFi: The doorbell or battery camera scans the host's QR code to pair and connect to the host's WiFi Number of terminals: Supports up to 4 terminal battery cameras at the same time Type: Battery low power video doorbell/camera Pixels & Resolution: 4MP（19201440） Battery: 218650 batteries (5200mA) Is it rechargeable: Support charging/5V1.5A charger Encoding: H264 PIR: Support time can be set, default off Standby current / Standby time: <1mA/more than 3 months Doorbell button: Support Pairing method: Scan the host channel QR code or APP channel management QR code Audio: Two-way voice
Audio	Protocol: G711 Speaker: Built-in 1W speaker Microphone: Built-in microphone Function: Support bidirectional language, simplex

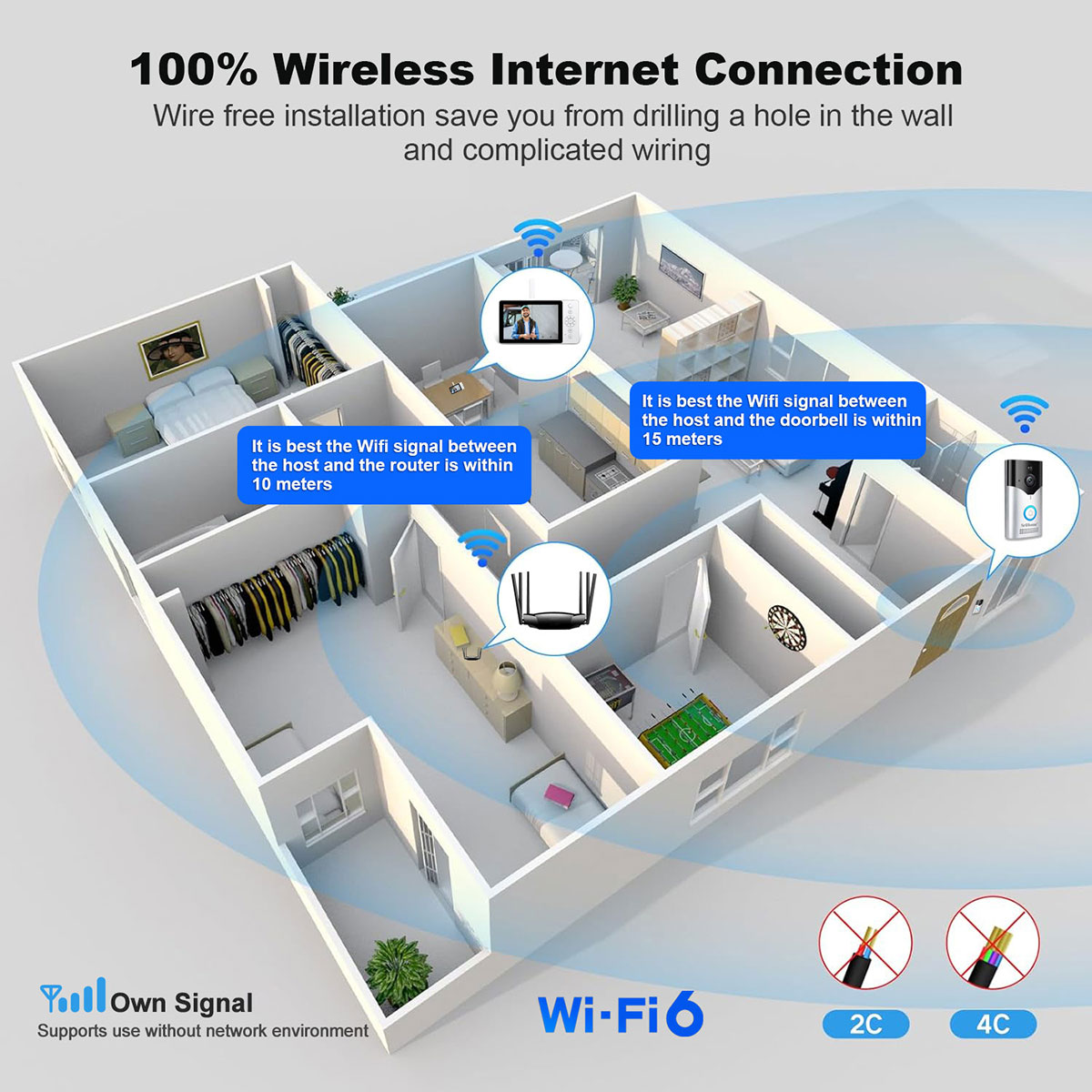

WiFi	WiFi Form: WiFi 6 Standard: IEEE 802.11b/g/n/ax 1T1R Security Protocol: WPA, WPA2, WPA3 personal Operating frequency: 2.412~2.484GHz
Operation Panel	Keyboard: Soft keyboard/select shift to switch uppercase and lowercase Function Buttons: Silicone button

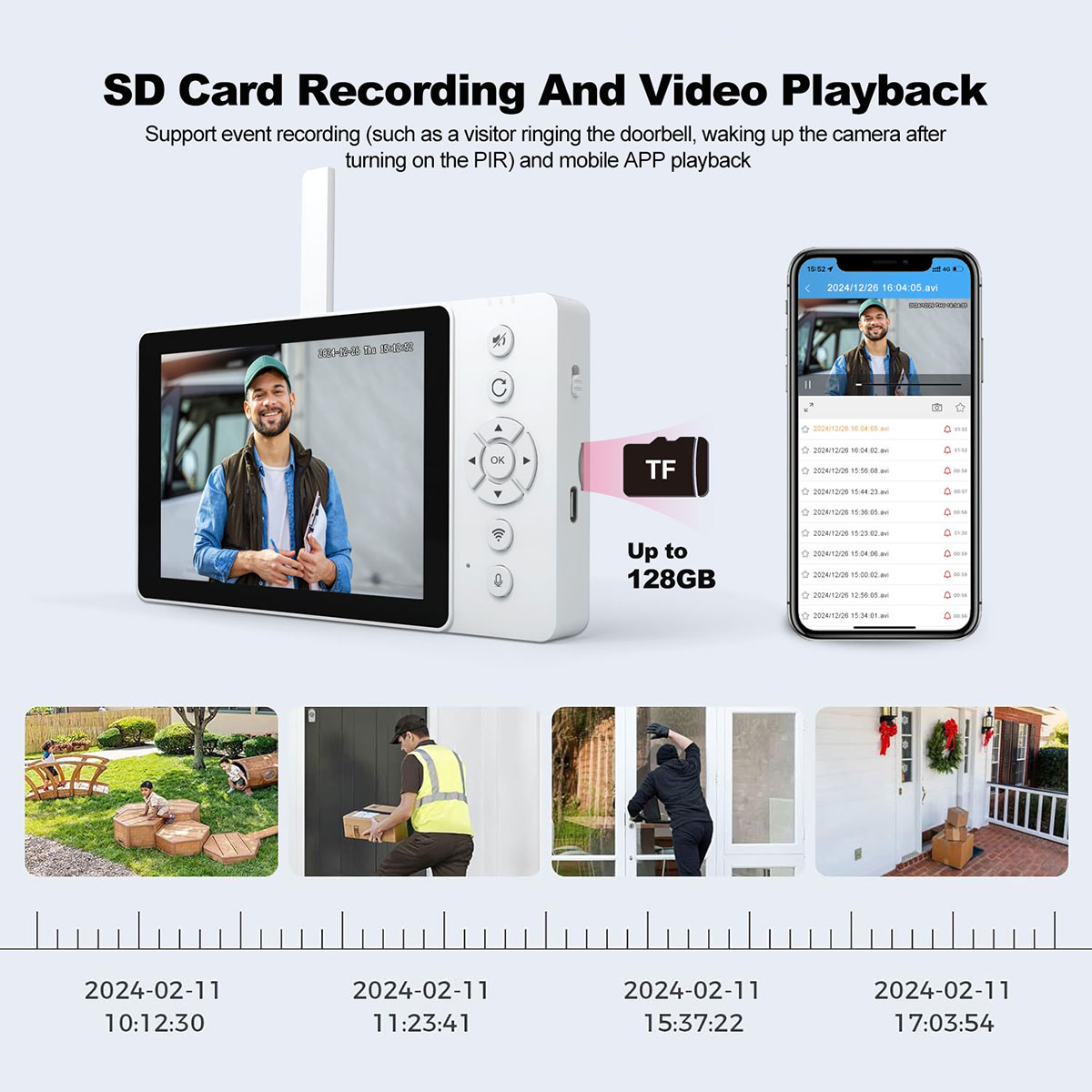

Local Storage	TF Card Storage: Support 128GB Recording Standards: MP4 Recording Method: Event recording (such as a visitor ringing the doorbell, turning on the PIR and waking up the camera) Video Resolution: VGA View Video: APP Playback
Notify	Doorbell Visitor: Real-time video push and support for real-time intercom APP Notifications: Visitor events and PIR events can be pushed to users through the APP Prompt Sound: Doorbell ding-dong reminder tone broadcast
Application	Video Doorbell: Push the doorbell to push real-time video to the indoor host to protect the safety of your family Security System: A small portable security system without wiring, allowing security personnel to observe surrounding conditions at any time Home Monitoring Kit: Equipped with low-power battery camera, eliminating the trouble of wiring Office Visitor System: More convenient for selective visitor reception

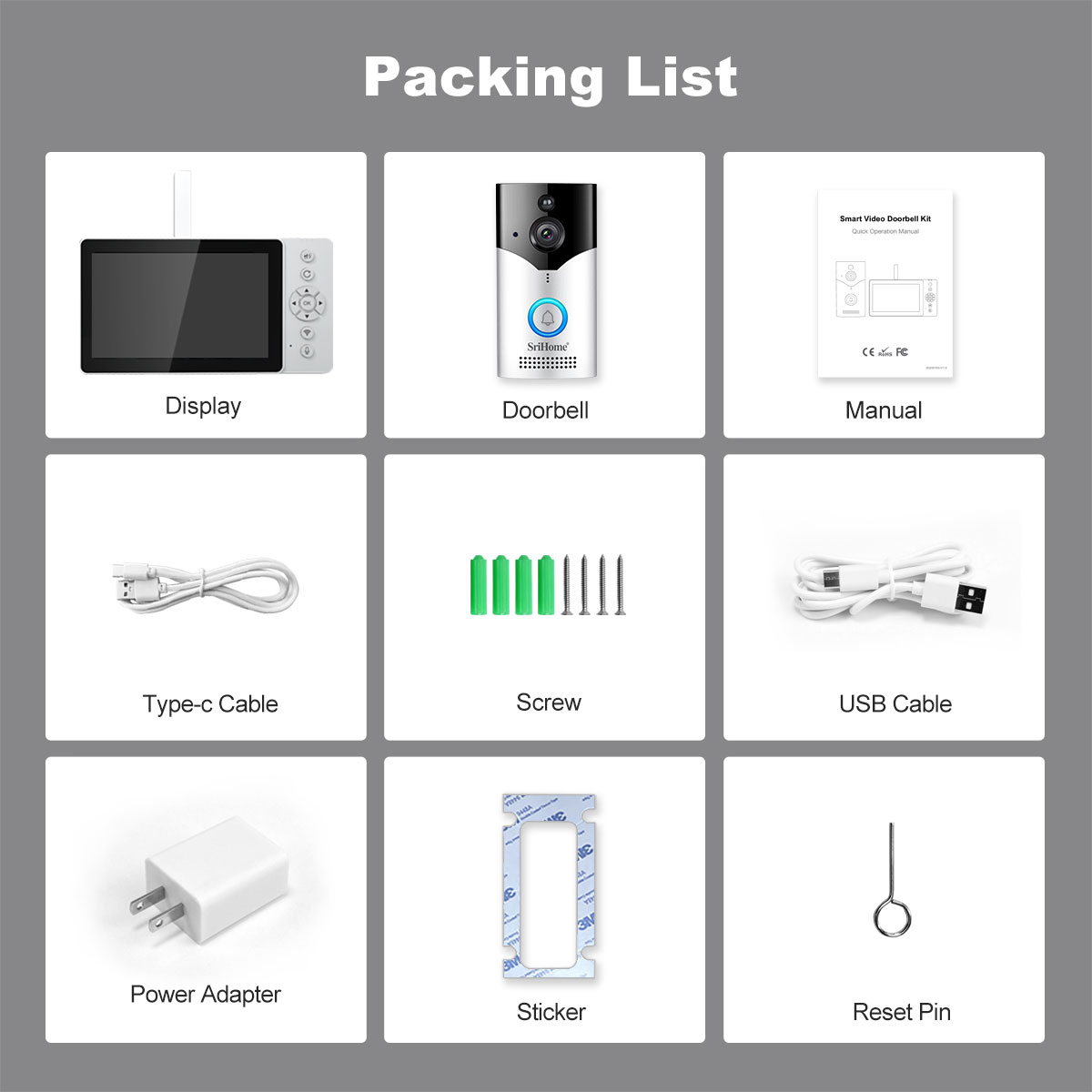

Other	Product Type: Smart Host Power Interface: type C Working Temperature: '-10℃ ~50℃ Power consumption: 4.5W~7.5W Operating Humidity: 10%－90% RH Accessories: 1Instruction manual, 15V power adapter, 1*charging cable (1 meter)
Certification	CE, FCC, RoHS
