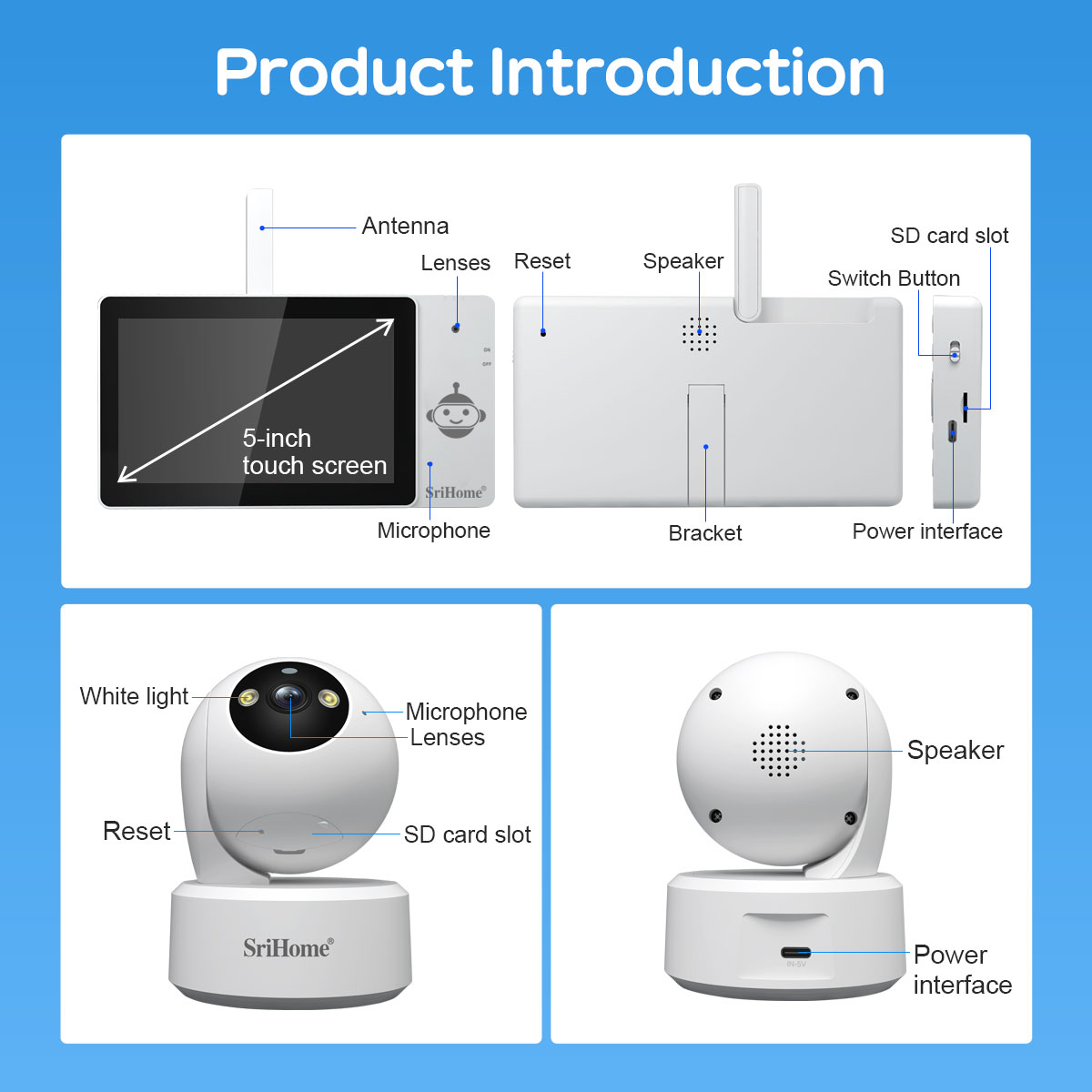

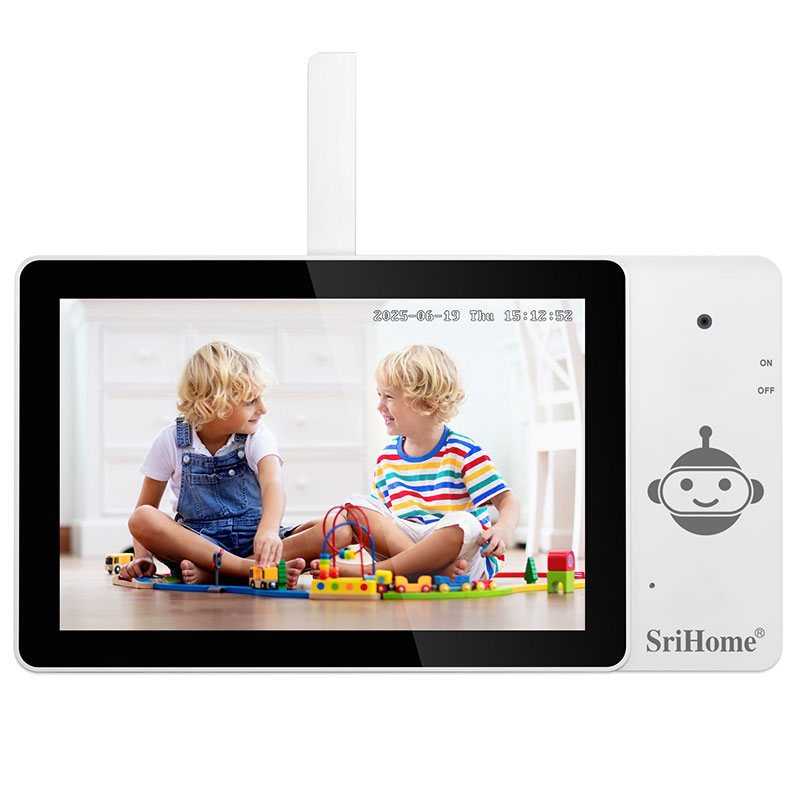

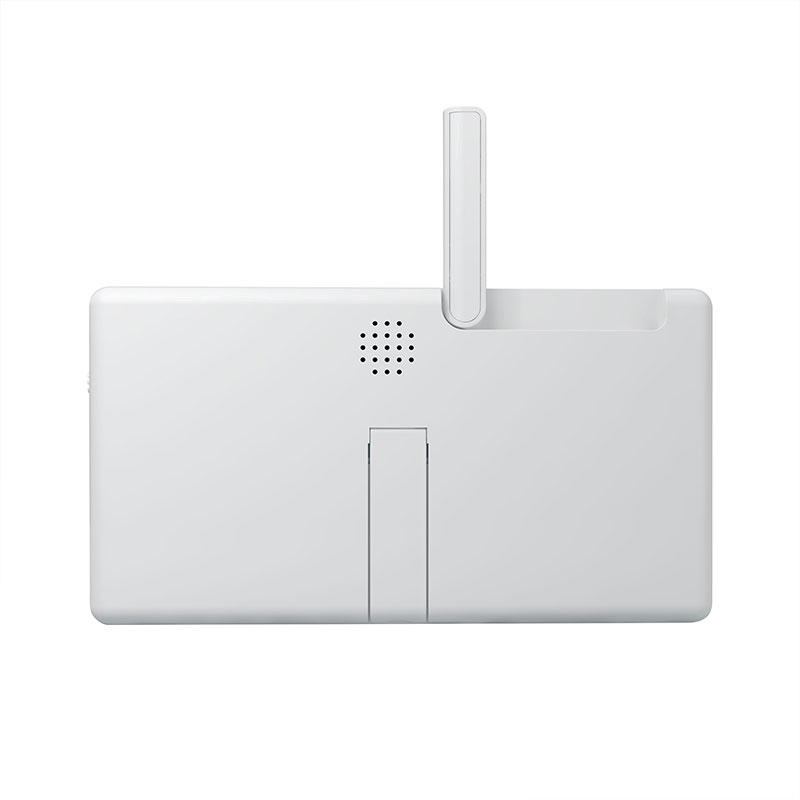

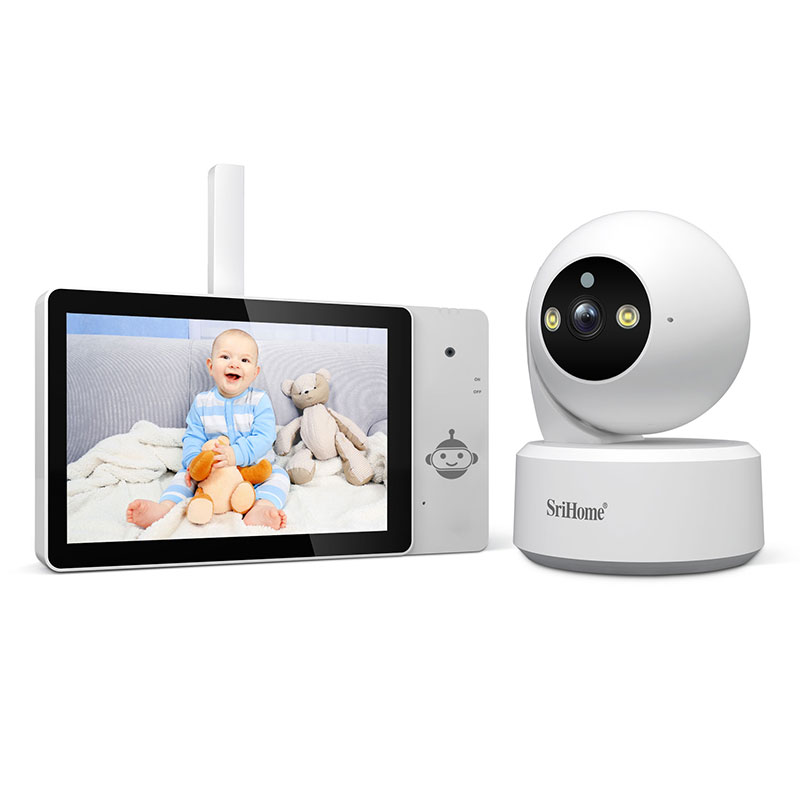

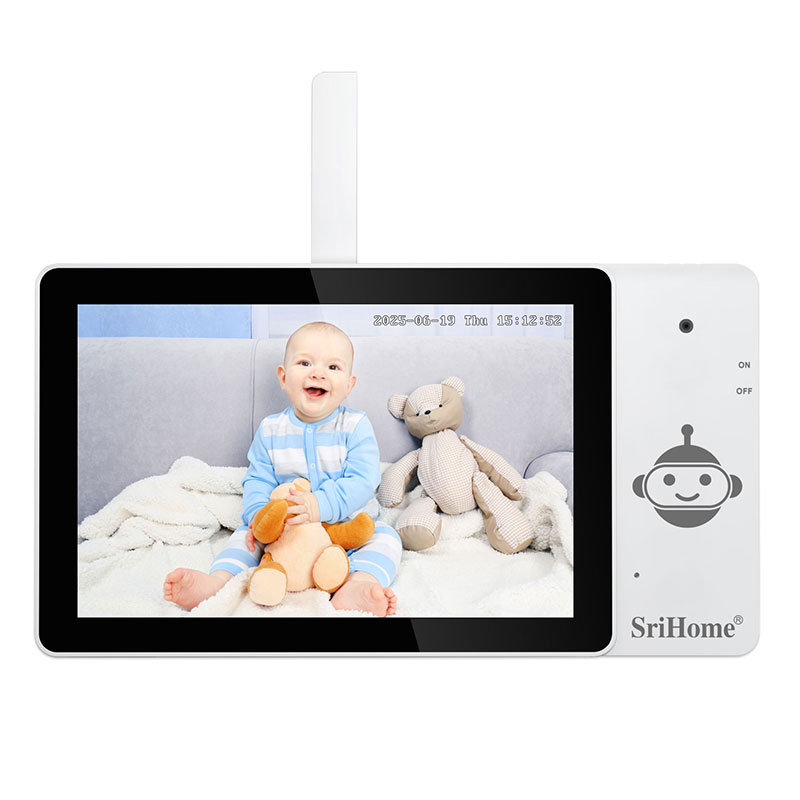

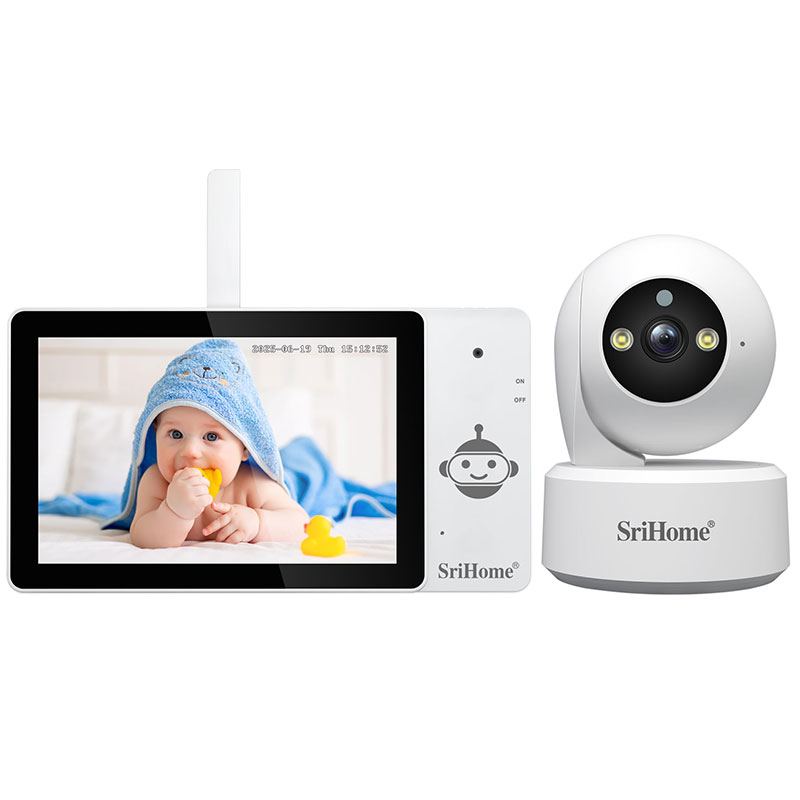

DH050 Host

Main Processor：PX30 Cortex-A35 quad-core, up to 1.5GHz;

Operating System：Android 9.0

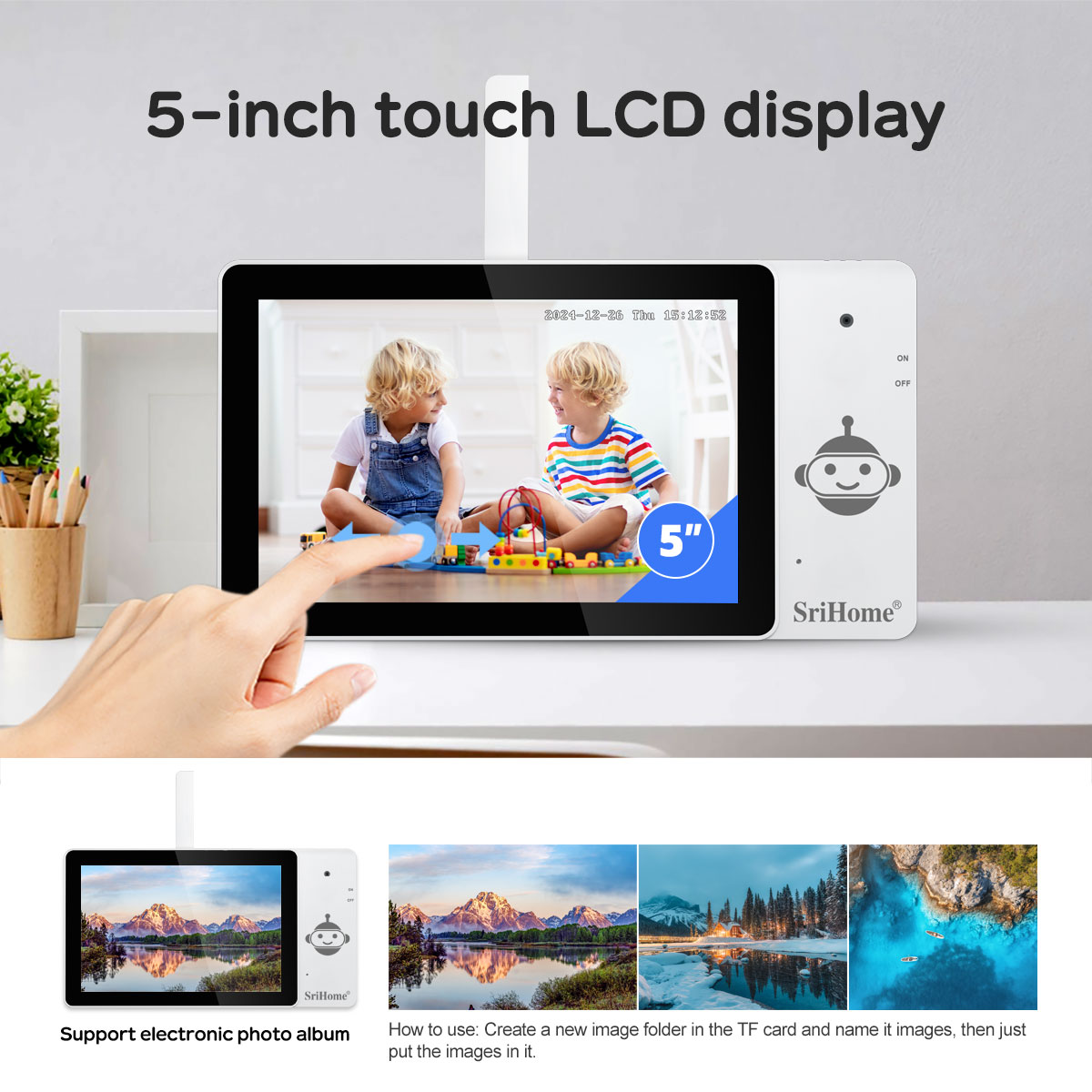

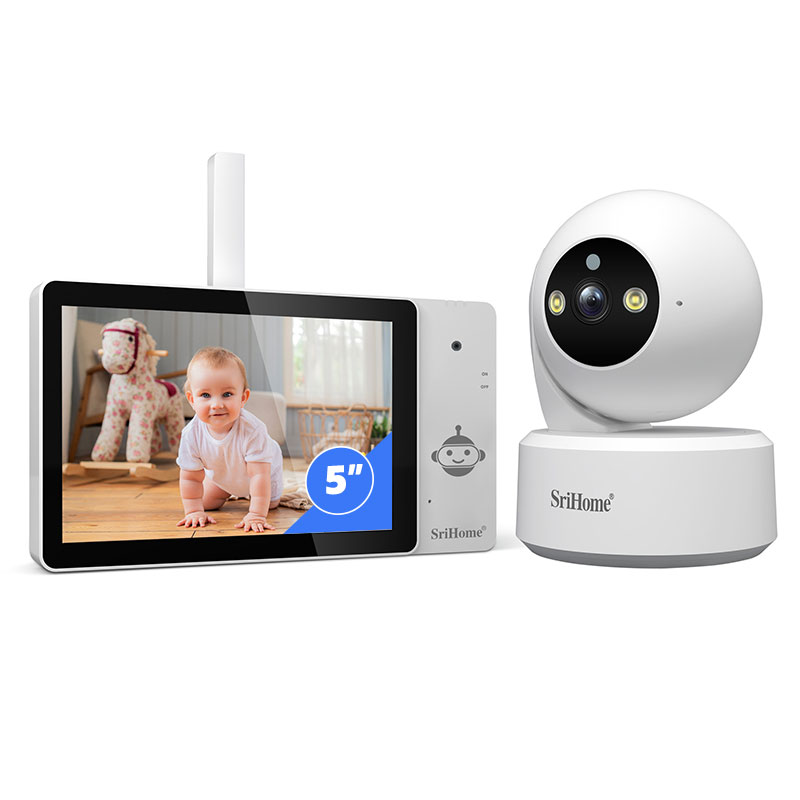

Screen size：5 inch

Resolution：720 x RGB x 1280

Touch：Supports

Turn off the Screen：The screen will automatically turn off when exiting the configuration interface

Encoding Format：H.264

Maximum Resolution：4 channels 1920*1080

Doorbell：Suuports（Optional）

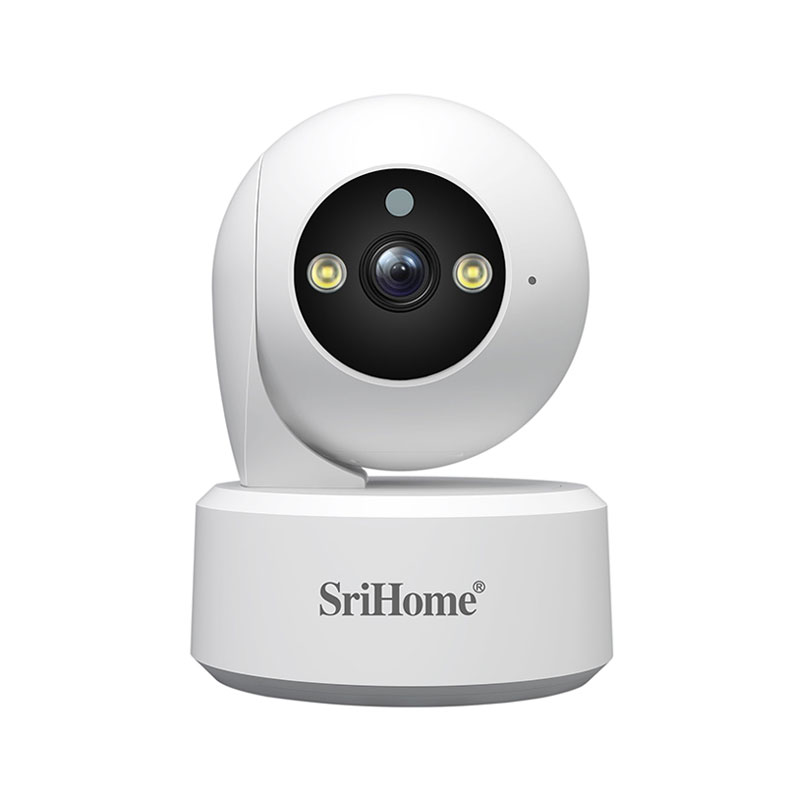

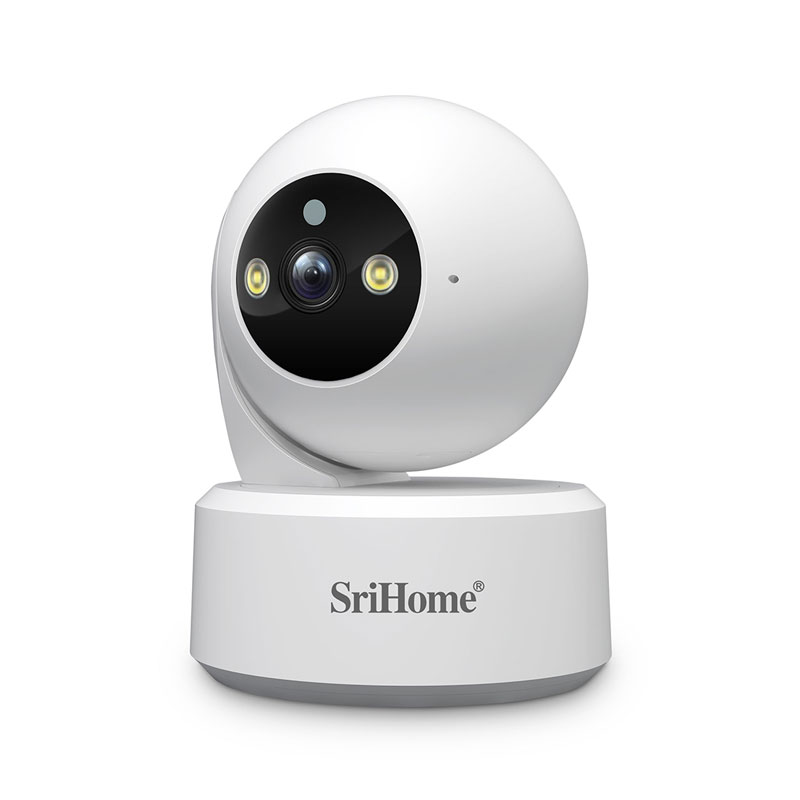

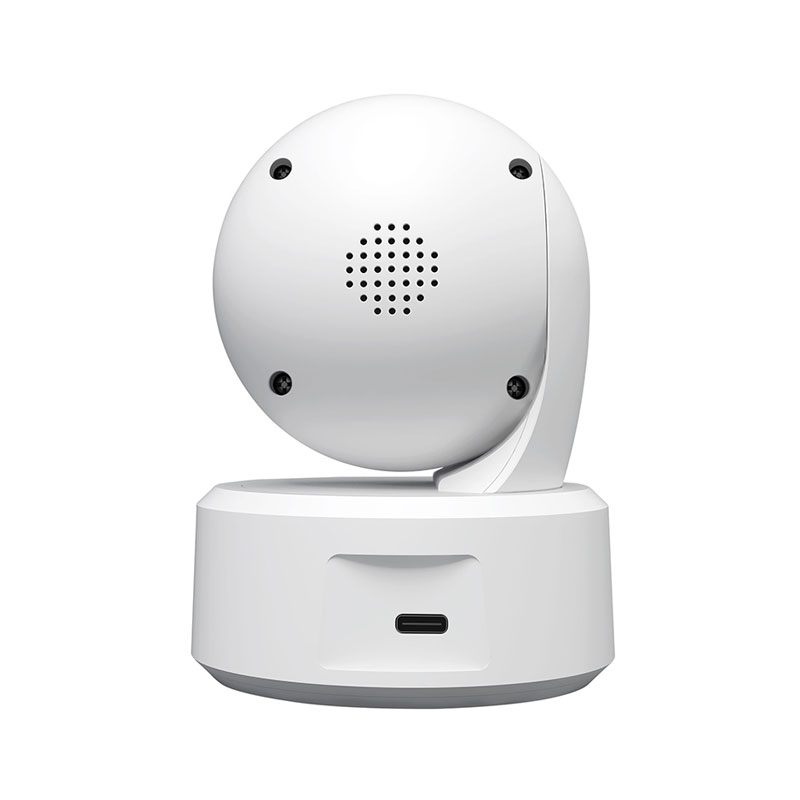

SH064 HD Camera

Connection mode：WiFi: The doorbell or battery camera scans the host's QR code to pair and connect to the host's WiFi

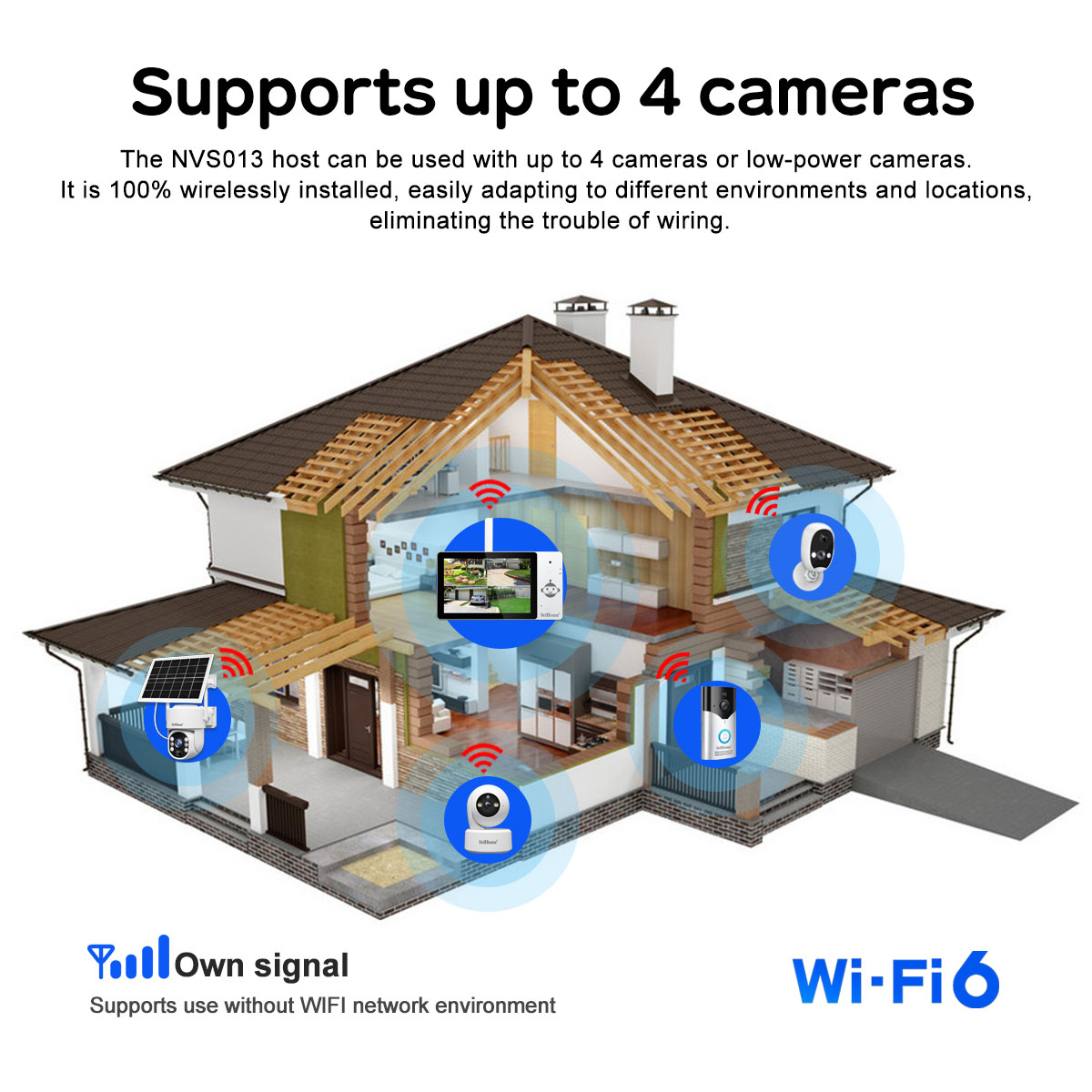

Number of terminals：Supports up to 4 terminal battery cameras at the same time

type：Battery low power video doorbell/camera

Pixels & Resolution：4MP（1920*1440）

Battery: 2 18650 batteries(5200mA)

Is it rechargeable: Support charging/5V1.5A charger

Encoding: H264

PIR: Support time can be set, default off

Standby current / Standby time: <1mA/more than 3 months

Doorbell button: Support

Pairing method: Scan the host channel QR code or APP channel management QR code

Audio: Two-way voice

Protocol: G711

Speaker: Built-in 1W speaker

Microphone: Built-in microphone

Function: Support bidirectional language, simplex

WiFi Form: WiFi 6

Standard: IEEE 802.11b/g/n/ax 1T1R

Security Protocol: WPA, WPA2, WPA3 personal

sta/AP: Support: It can connect to WiFi router and provide WiFi hotspot for terminal camera at the same time

Operating frequency: 2.412~2.484GHz

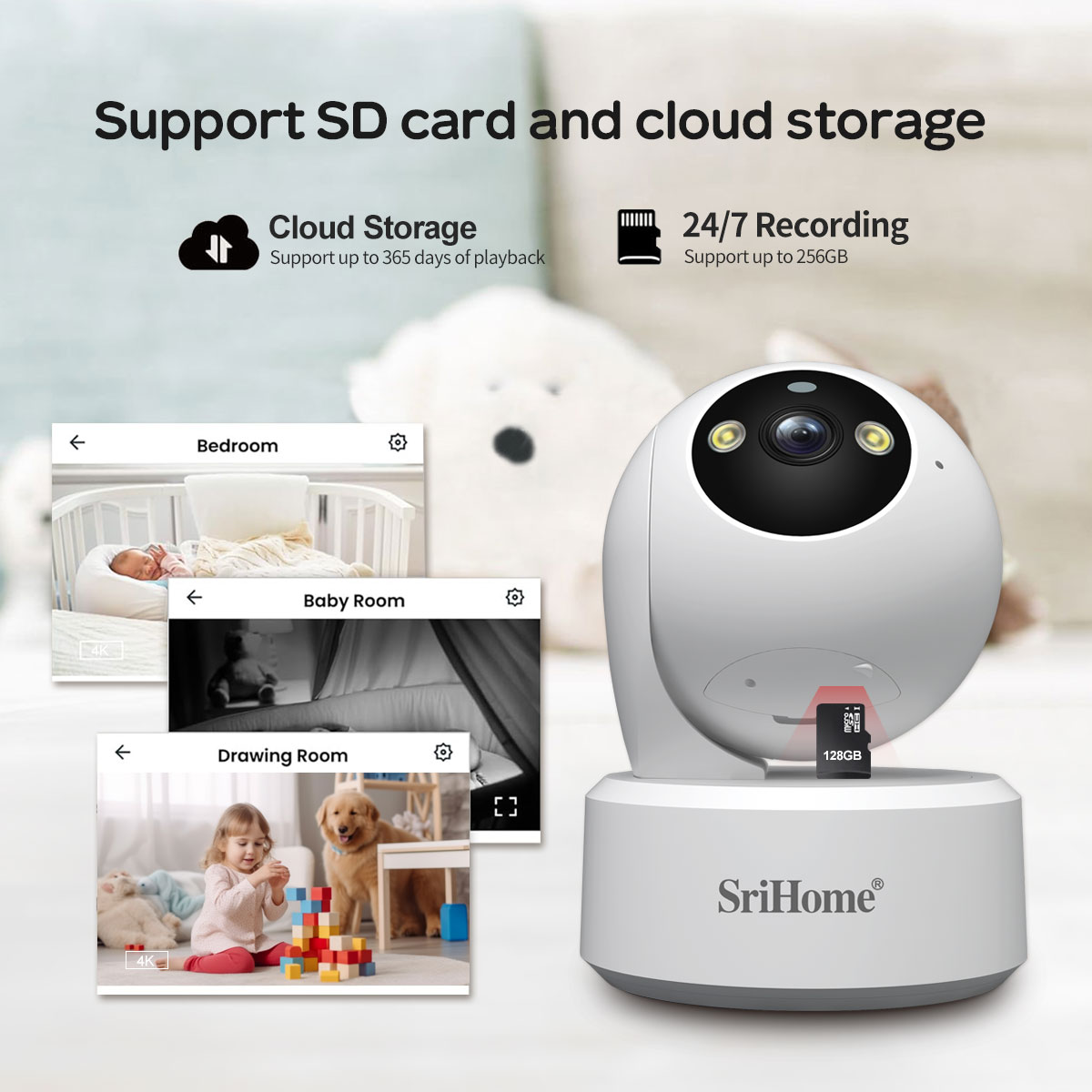

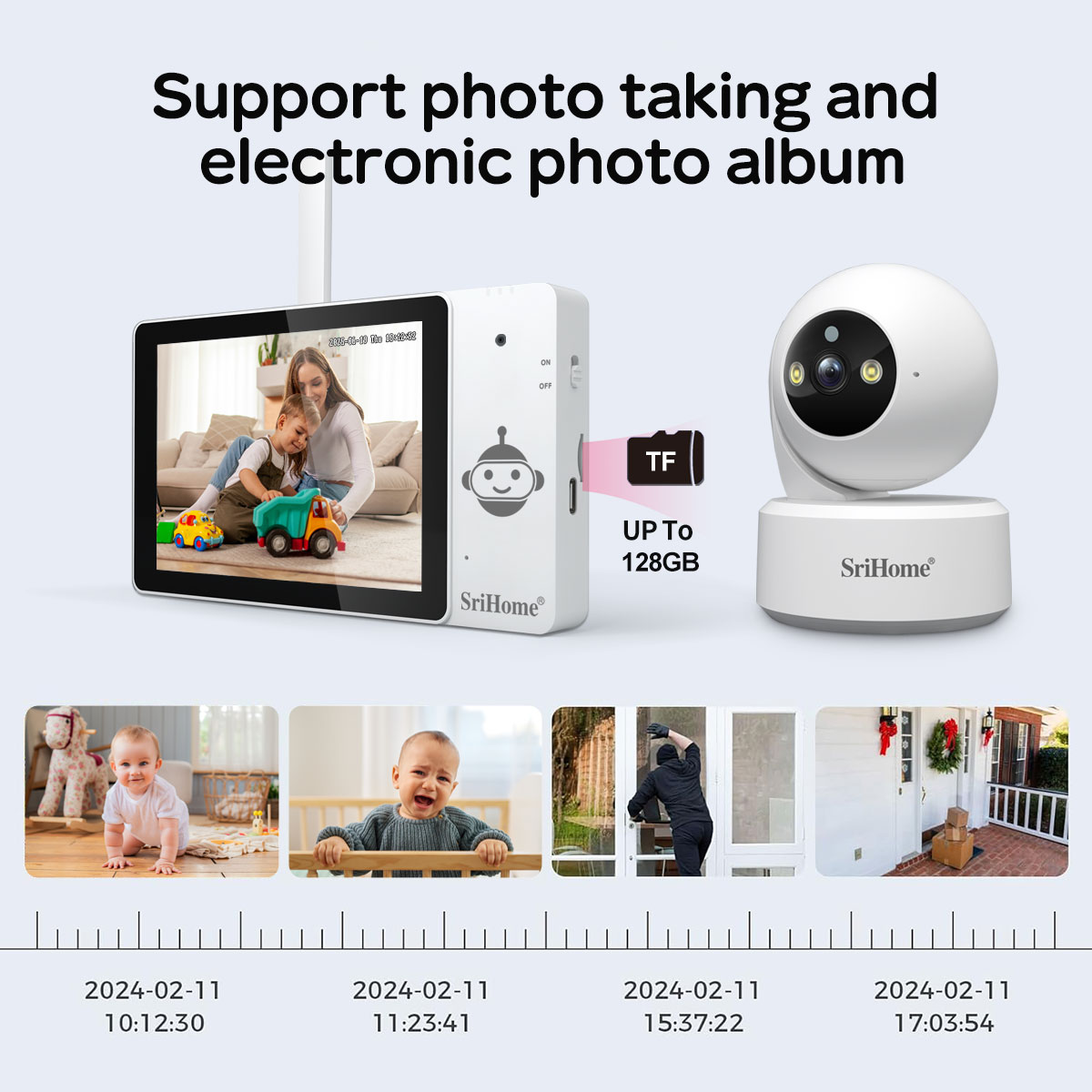

TF Card Storage: Supports 128GB

Recording Method: Host does not support SD card recording

SD Card Storage: Store alarm pictures, screenshots, download camera video files to the host SD card, and change the desktop background image

Doorbell Visitor: Real-time video push and support for real-time intercom

APP Notification: Supports

Promote music: Visitor call prompt tone broadcast

Video Doorbell: Push the doorbell to push real-time video to the indoor host to protect the safety of your family

Security System: A small portable security system without wiring, allowing security personnel to observe surrounding conditions at any time

Home Monitoring Kit: Equipped with low-power battery camera, eliminating the trouble of wiring

Office Visitor System: More convenient for selective visitor reception

Product Type: Smart Host

Power Interface: type C

Working Temperature: '-10℃ ~50℃

Power consumption: 4.5W~7.5W

Operating Humidity: 10%－90% RH

Body size：157mm*85mm*20mm

Packing size：154mm*120mm*177mm

Weight: Net weight326g,  Gross weight:600g ((subject to actual weight)

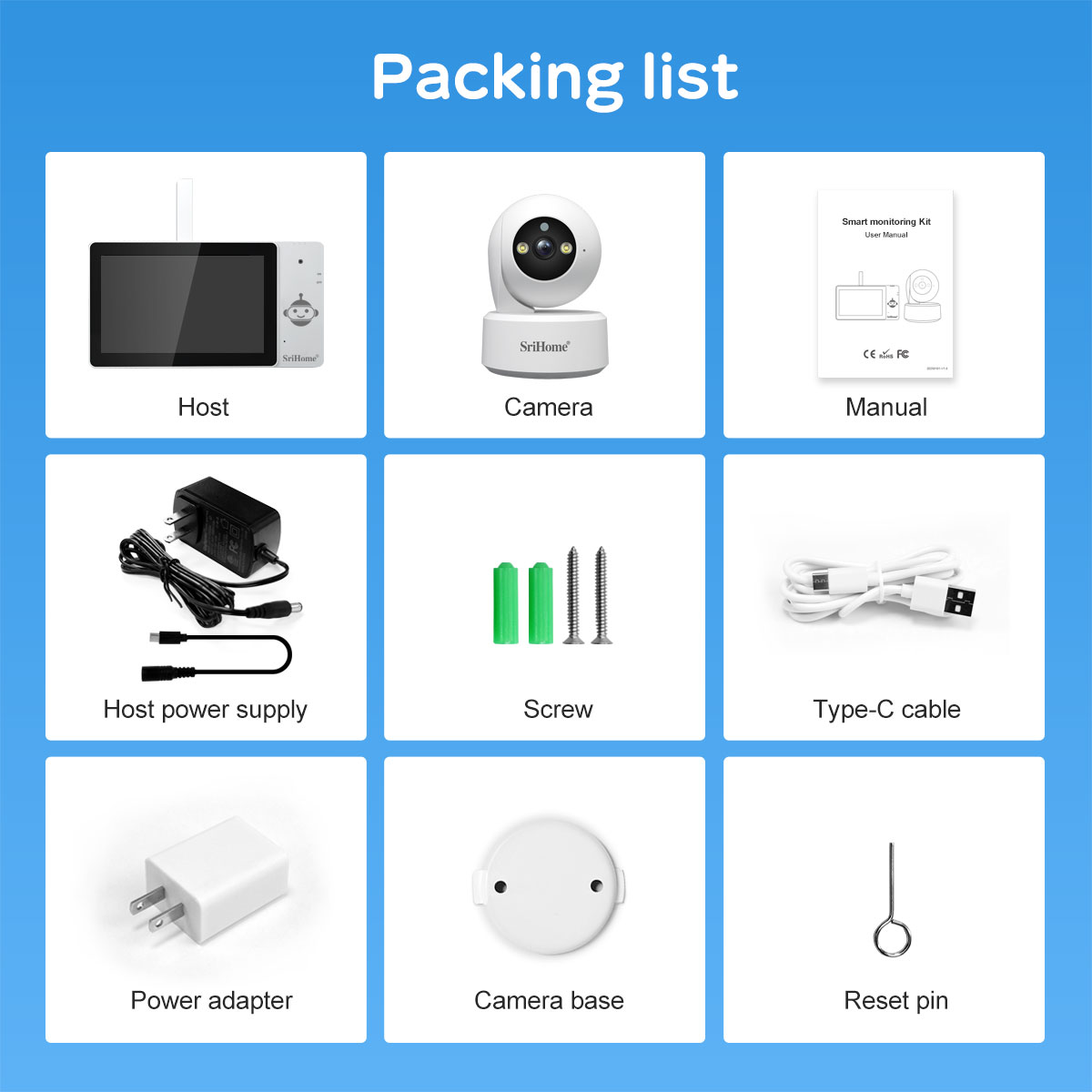

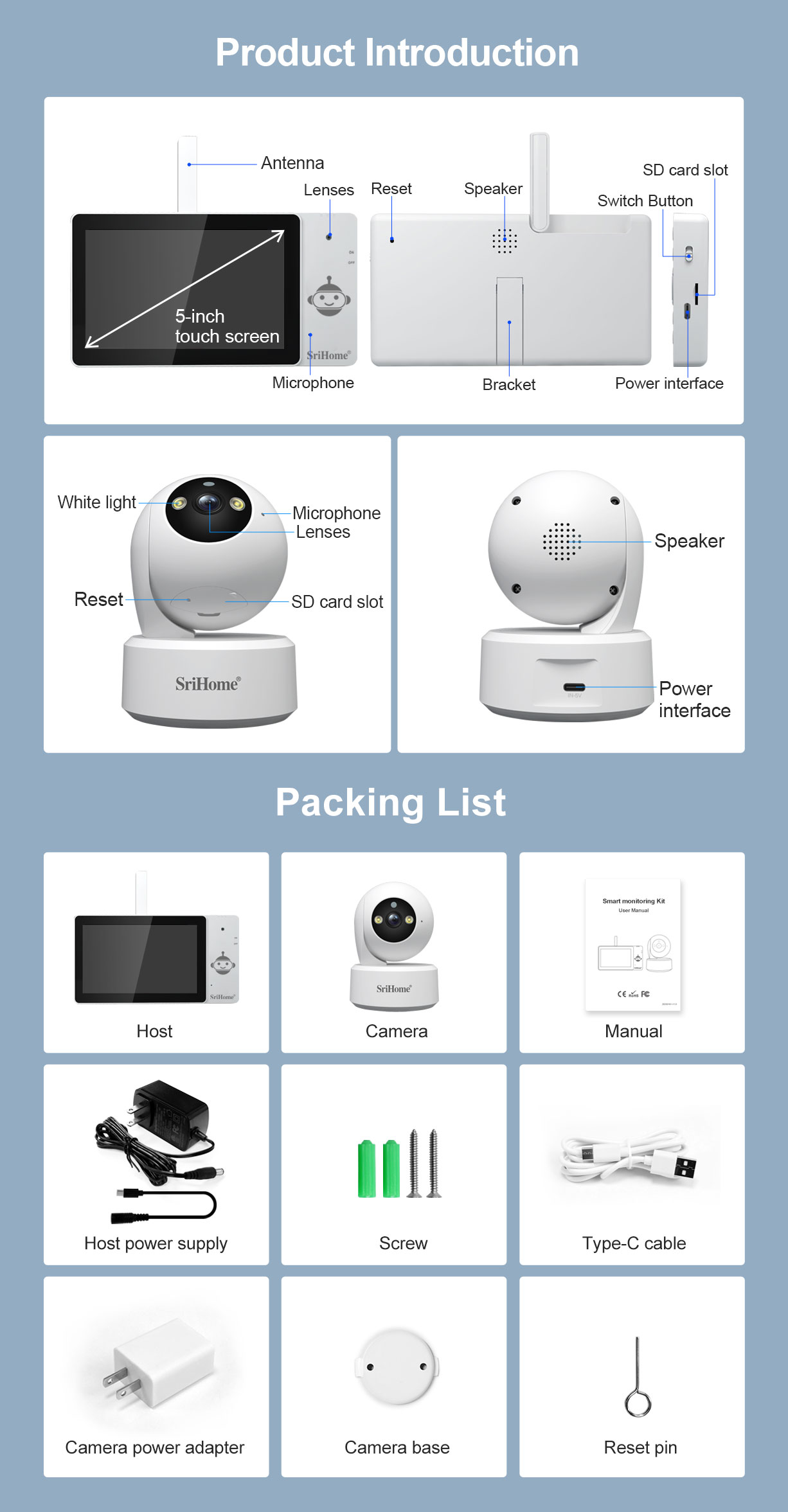

Accessories: 1*Instruction manual, 1*12V power adapter, 1*charging cable (0.3 meter)
