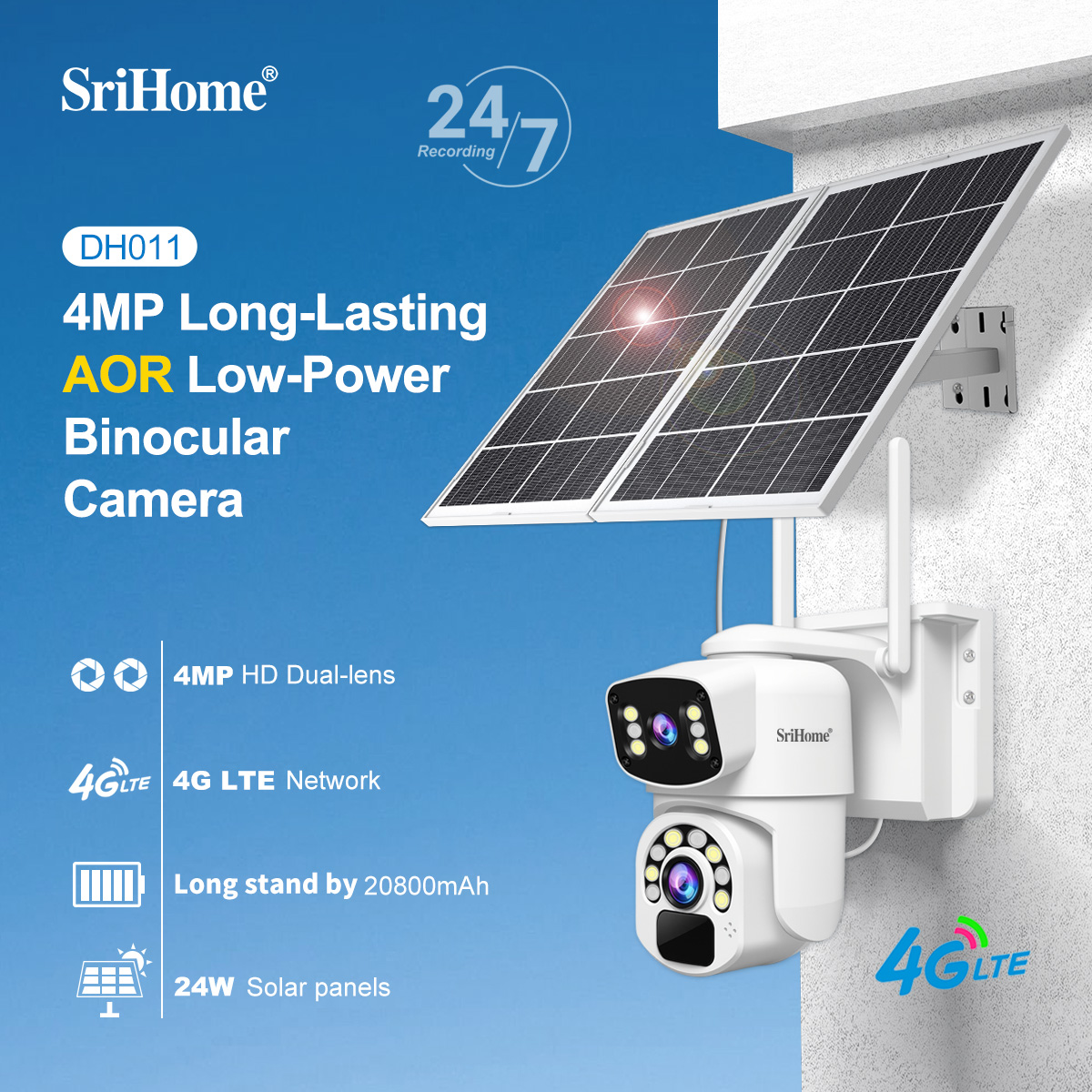

| System |
Main Processor：2 multi-core high-speed processors Operating system：Real Time Operating System |
| Image sensor |
Sensor：CMOS sensor 1/3" Pixel：1920*1080P Minimum illumination：0.1LUX/F1.2 |
| Lens |

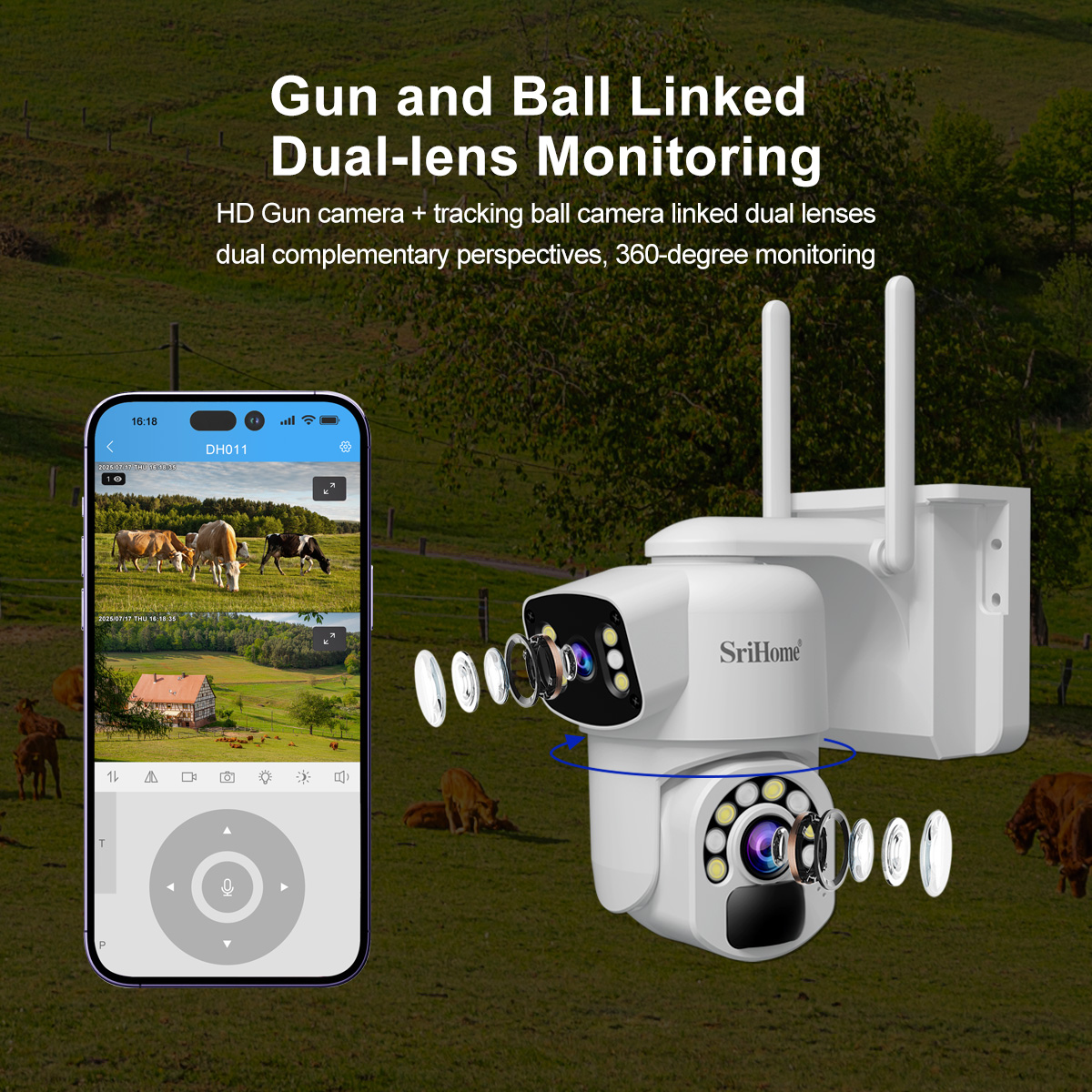

Lens quantity：2 Lens Lens parameters：Focal length: 4mm, viewing angle 110° |
| Battery |

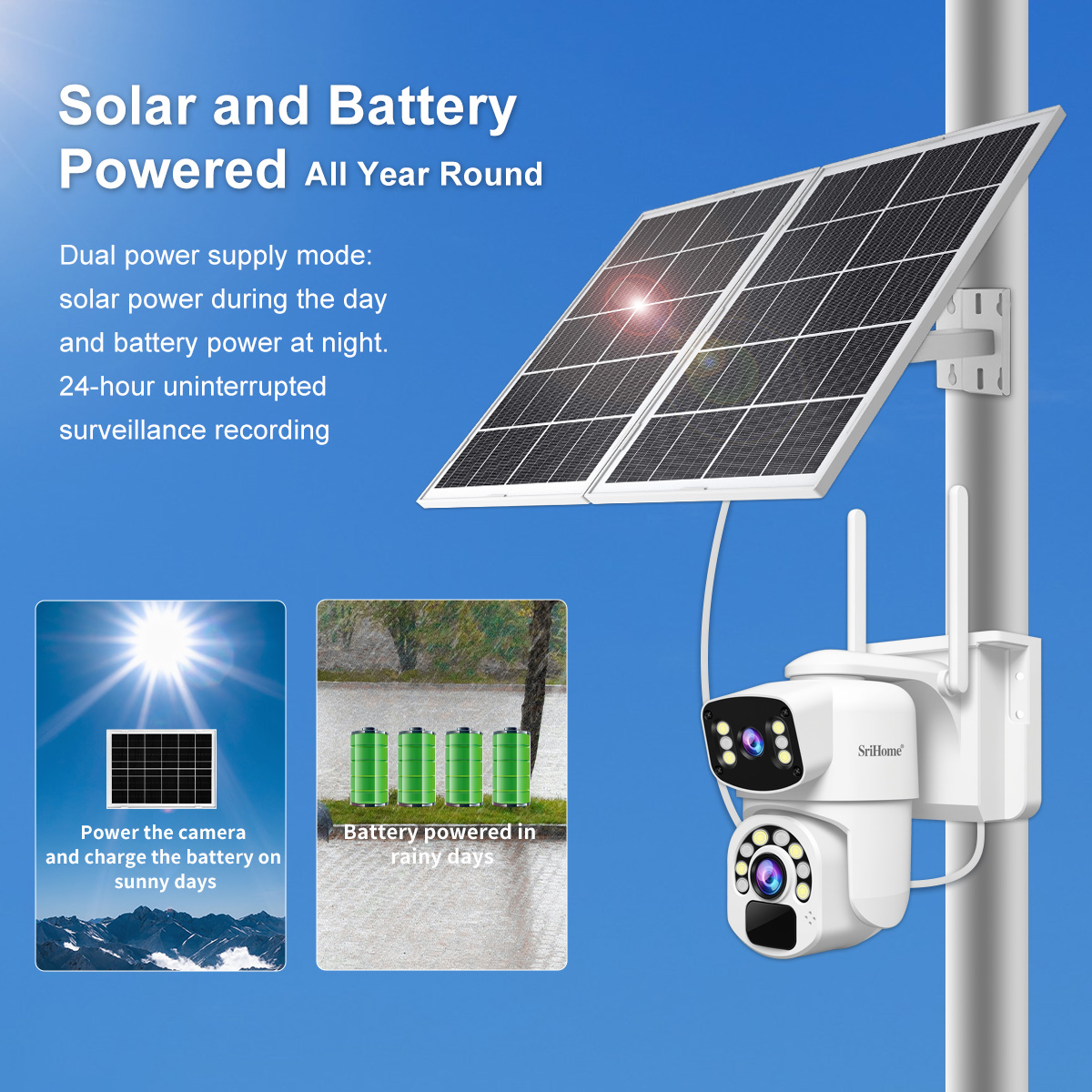

Specification：4*18650 battery，Battery capacity:7.4V,10400mA Standby time：About1 month(when raining) Standby current：less than 1mA Charge Current：less than 120mA Wake up time：About 5000 times (10400mA Batteries,under the solar non-charging) Charge Type：Type C,12V Charge Way：Solar pannel, Power supply, Mobile power(DC 12V） |

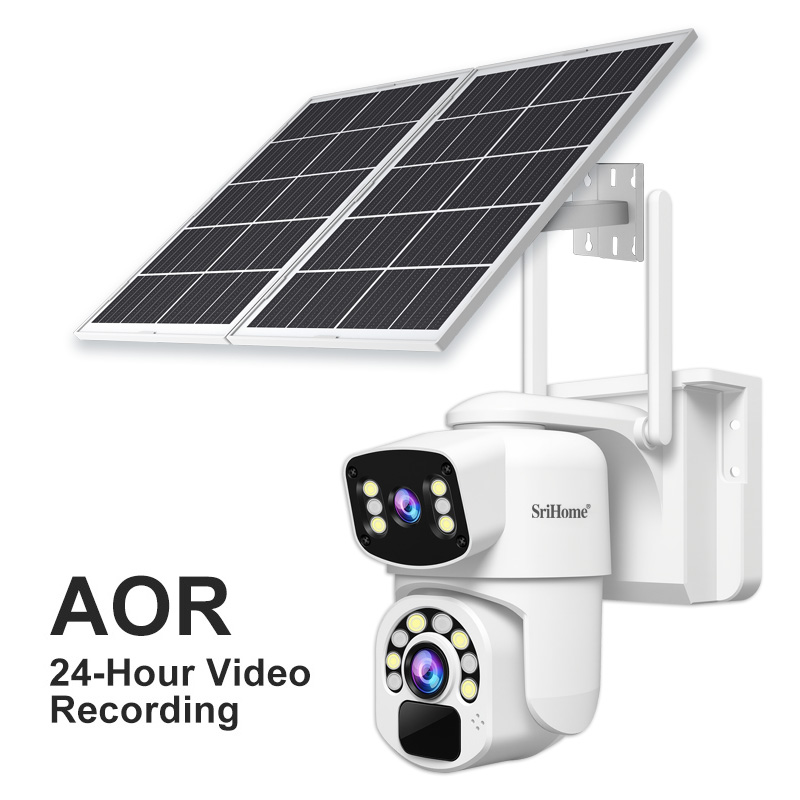

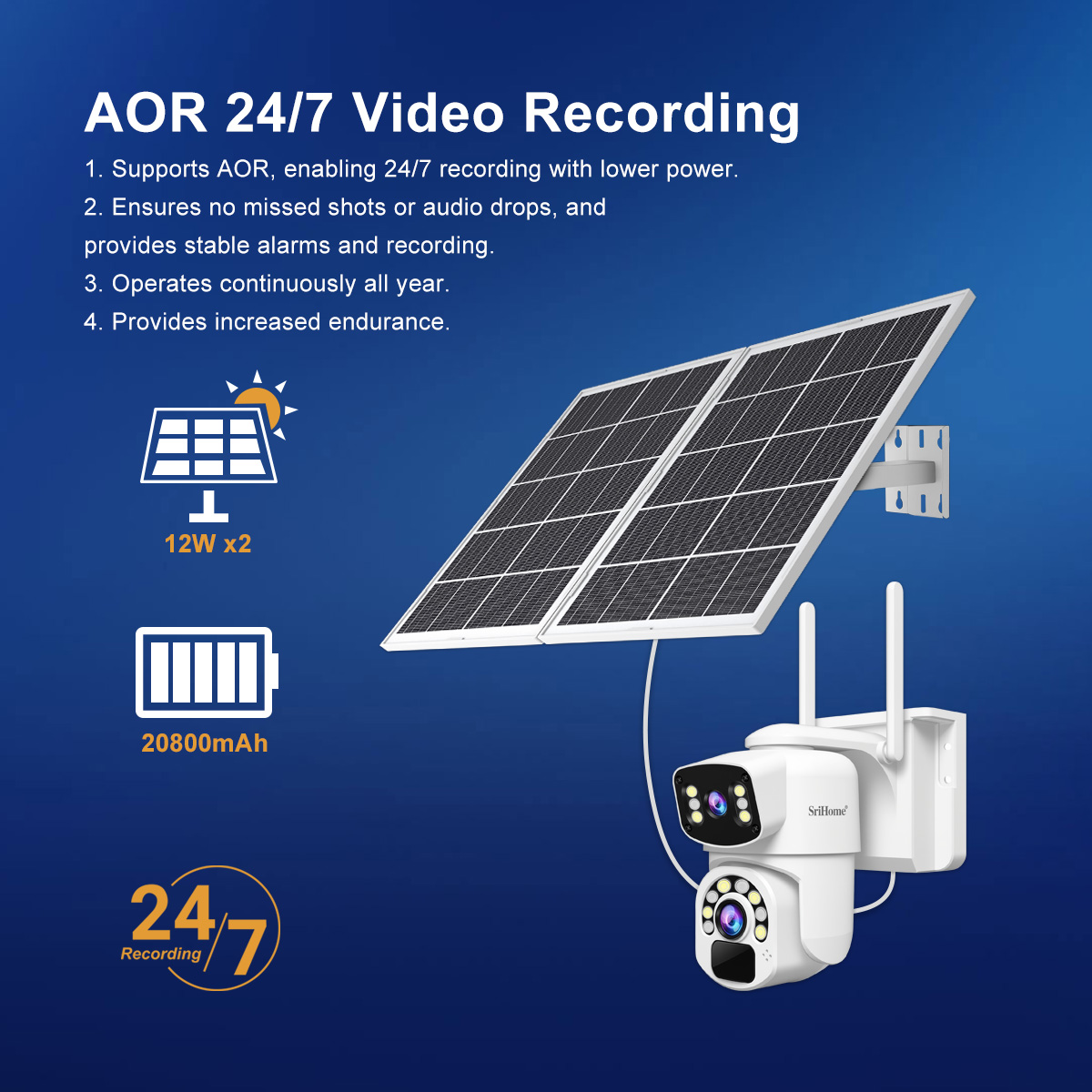

| AOR | Support：When the battery level is above 50%, all-day recording is enabled. If it drops below 50%, the mode switches to alert recording. All-day recording automatically resumes once the device is charged to 80% |
| Vedio |
Resolution：(1920*1080)1080P，(640*360)360P Compression format：H.264 Frame frequency：15fps Exposure：Auto exposure white balance WDR：Digital WDR IR-Cut：No color cast during the day, good night vision Zoom：3x |
| light |

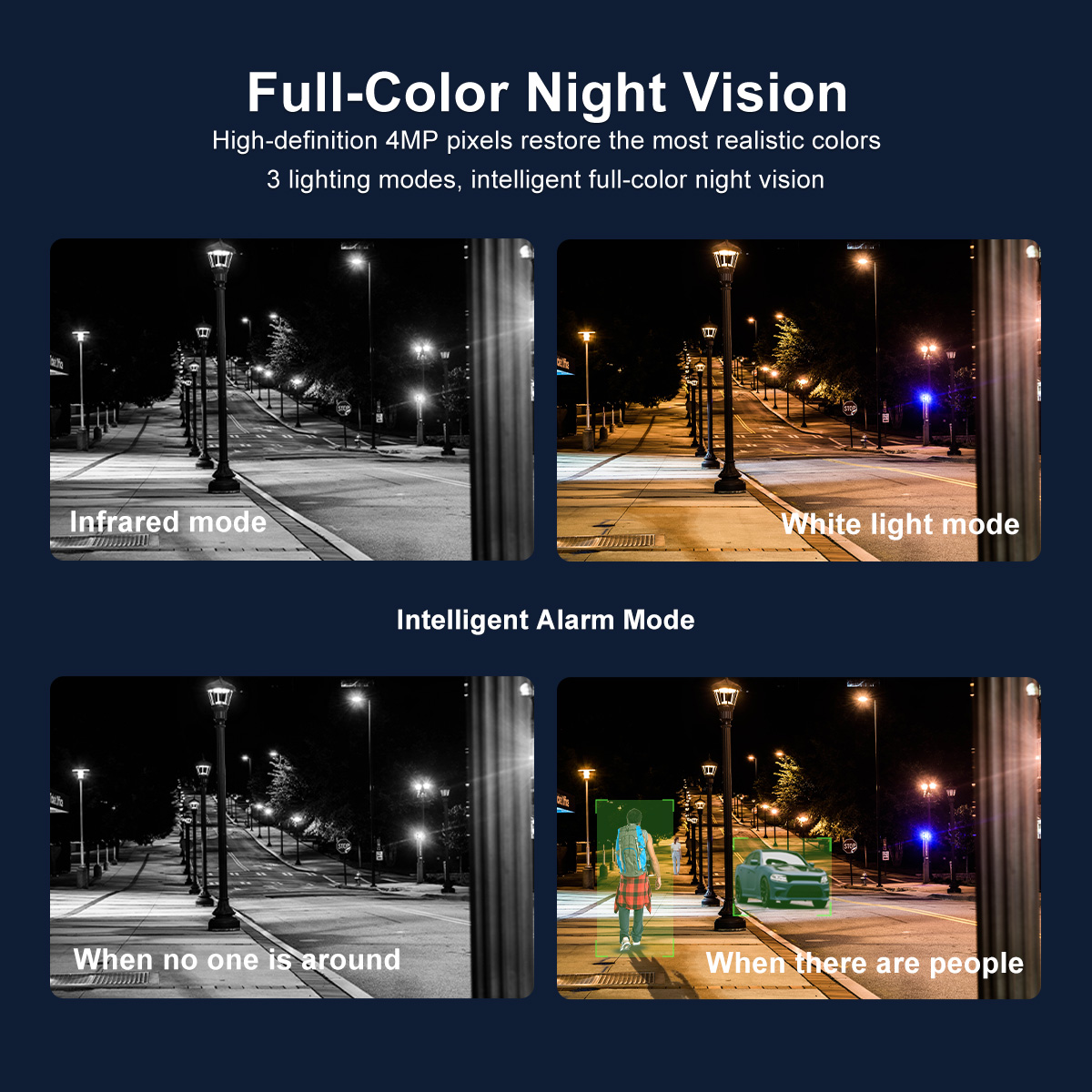

White light mode：Working hours：19:00~5:00（Configurable)，Turn on white light, full color night vision, adjustable brightness (default brightness: 20) Infrared mode：White light turns off and switches to night vision Alarm mode：1.Under normal power working state：Black & White Night Vision,When alarm is detected,turn on white light 2.PIR working state：Black & White Night Vision, APP Access: Infrared Light | PIR Trigger: White Light |
| Audio |
protocol：G711U Function：Built-in microphone and speaker,support monitoring and intercom |
| Storage |
TF Card：Max Support up to 128G TF card storage Record standard：VGA/HD Record mode：Alarm recording（Saving Power mode）：PIR+Humanoid trigger(Recommended) All day recording（Non-Power Saving Mode）：1.When the battery level is above 50%, 24-hour loop recording; 2.When the battery level is lower than 50%, it enters PIR working mode, recharge to more than 80% to resume 24- hour video recording Timing recording（Non-Power Saving Mode）：1.Continuous recording is scheduled for the set duration; the device defaults to PIR operation at all other times; 2.When the battery level is lower than 50%, it enters PIR working mode, recharge to more than 80% to resume 24- hour video recording Playback：Support remotely video playback |
| Network |

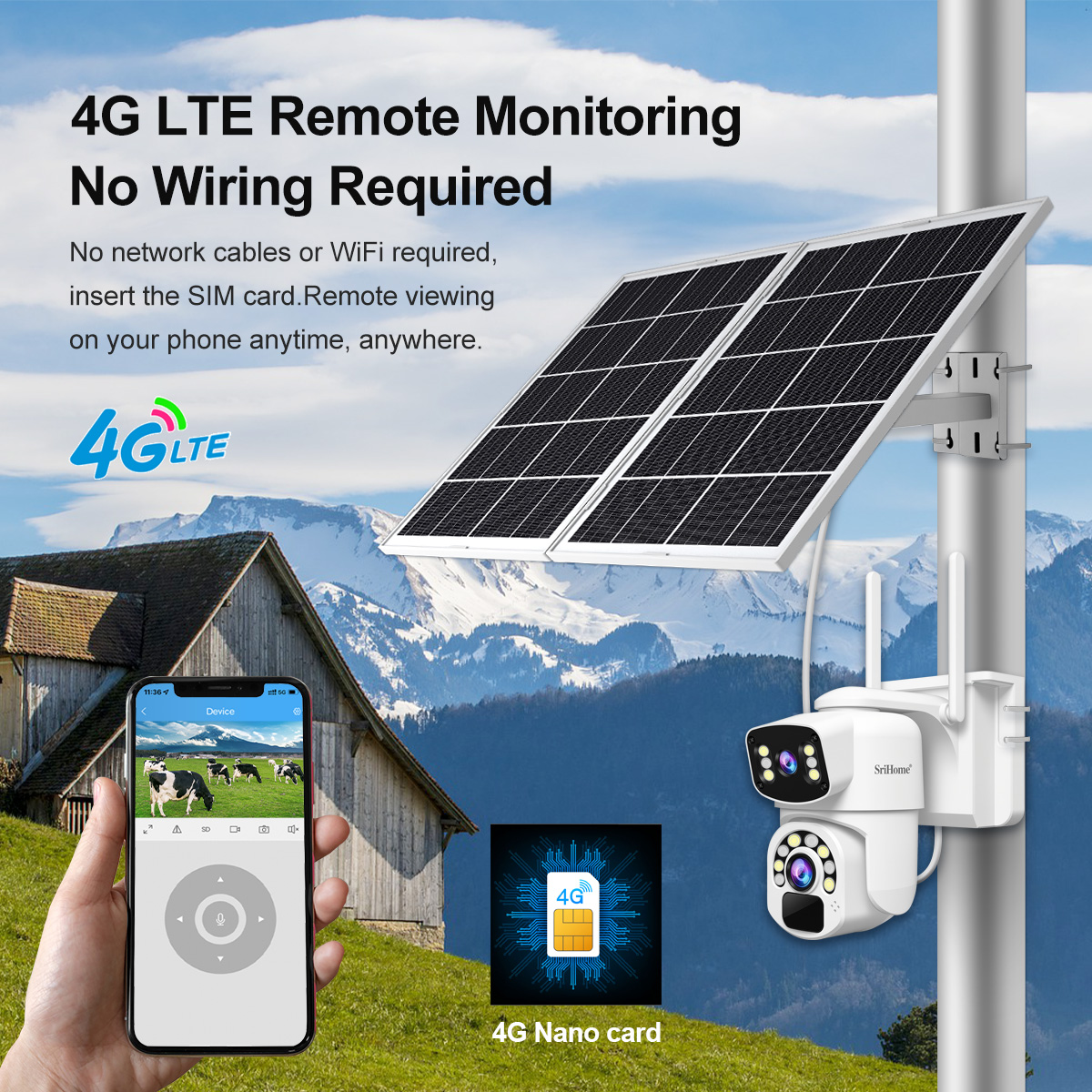

4G：LTE-FDD frequency band：B1/B3/B5/B8 LTE-TDD frequency band：B34/B38/B39/B40/B41 Use area：Asia, please refer to the frequency band for details Distribution mode：No need to configure the network, just plug in the card and use it |
| Privacy Protection |
Advanced Privilege Management：The system defaults the first user as the administrator, and other users must be authorized by the administrator before accessing the camera. |
| Alarm |
Alarm：Human body induction alarm(PIR) Alarm Notification：Alarm by phone notification |
| PTZ |

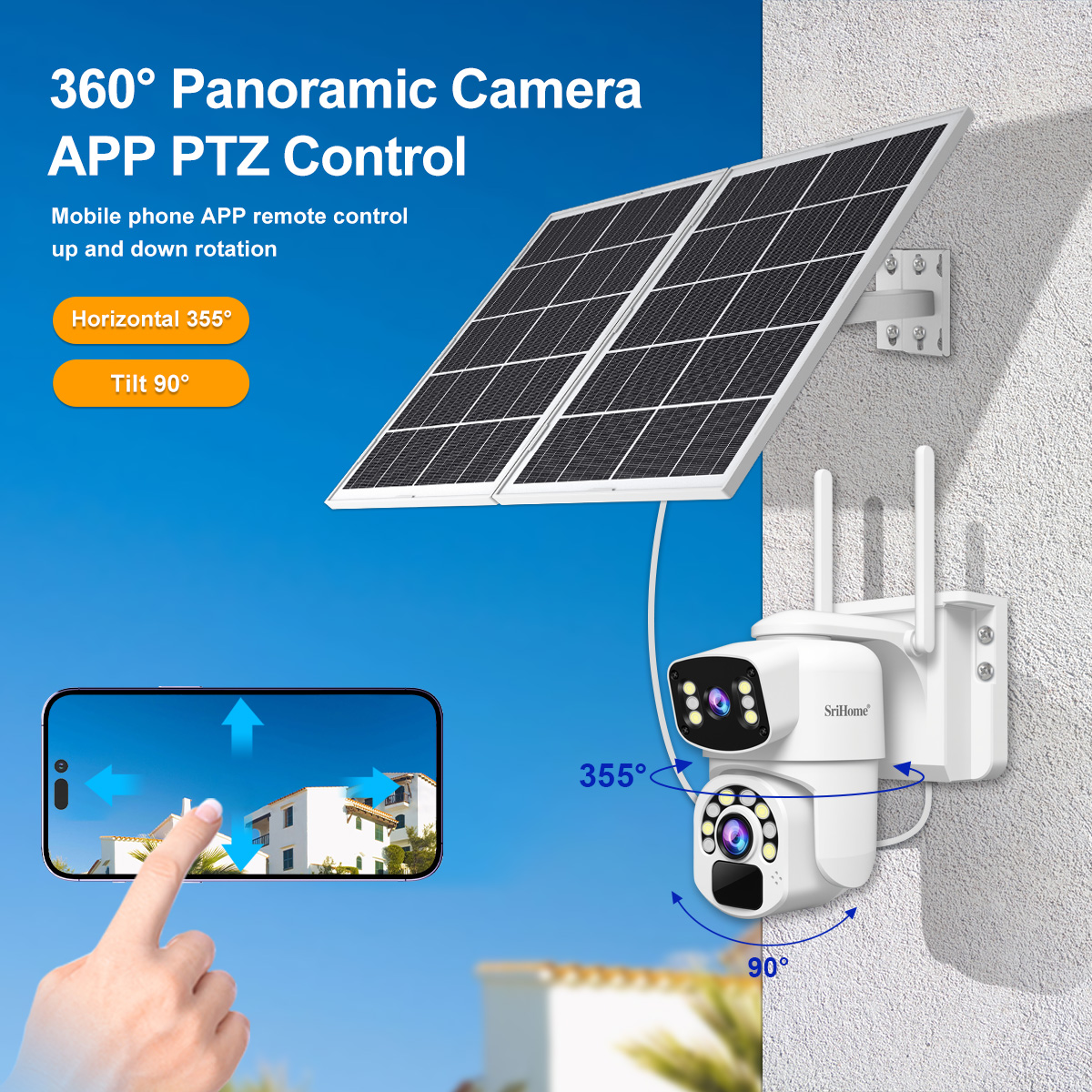

Support：Pan:355°, Tilt: 90° |
| PIR |
Support：Default start time（user can set） |
| APP |
Support（SriHome）：Support Android and IOS |
| Other |

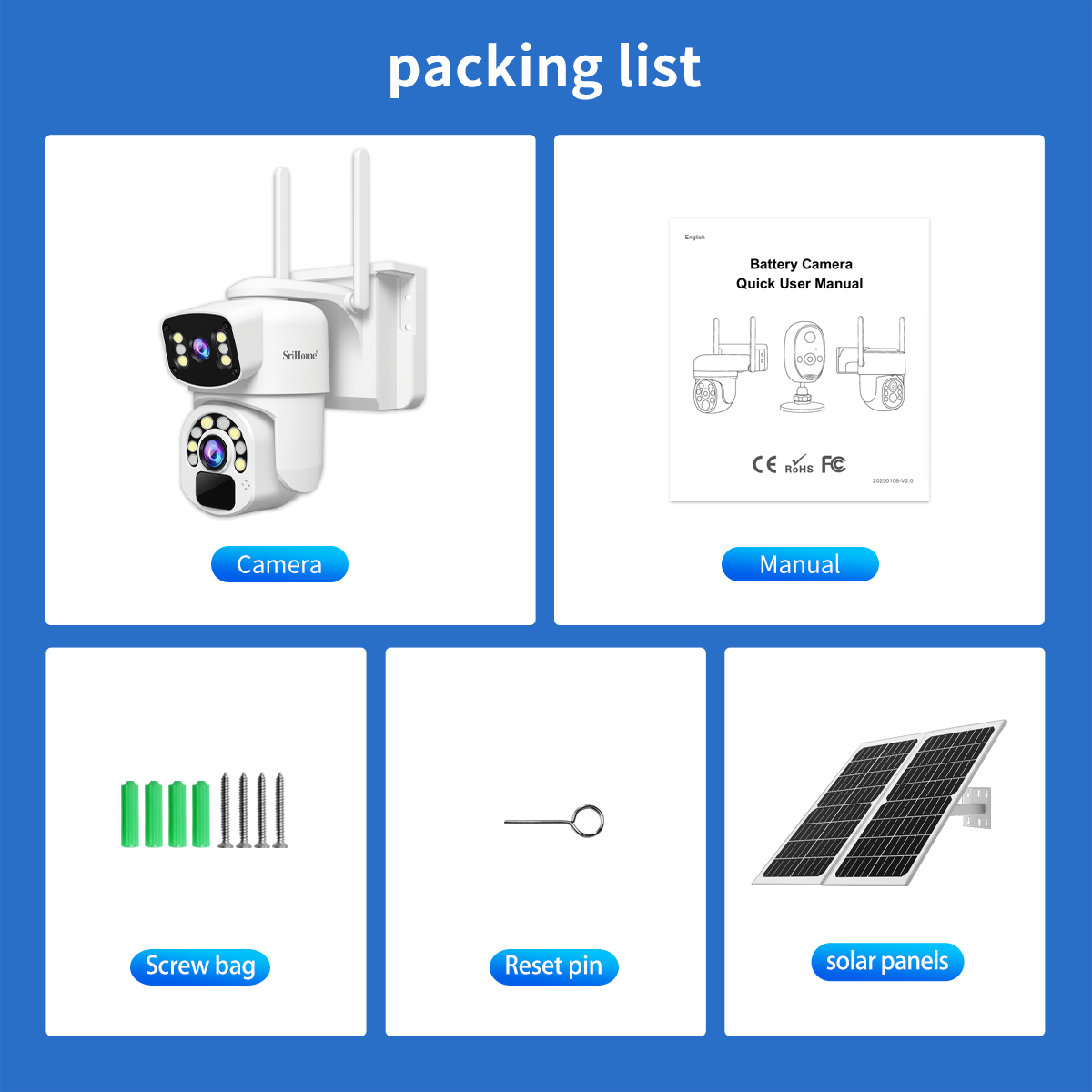

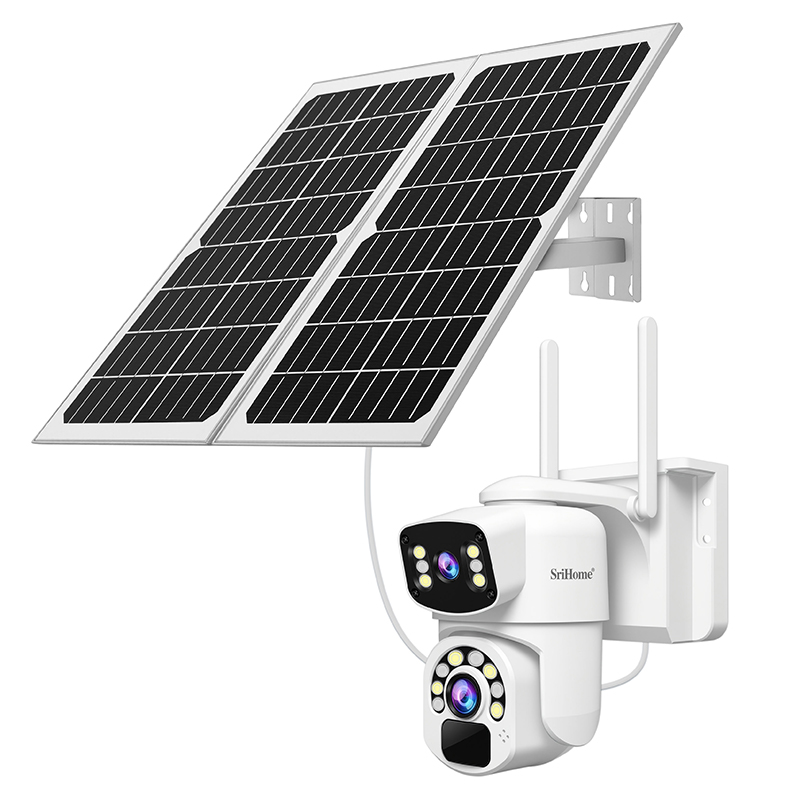

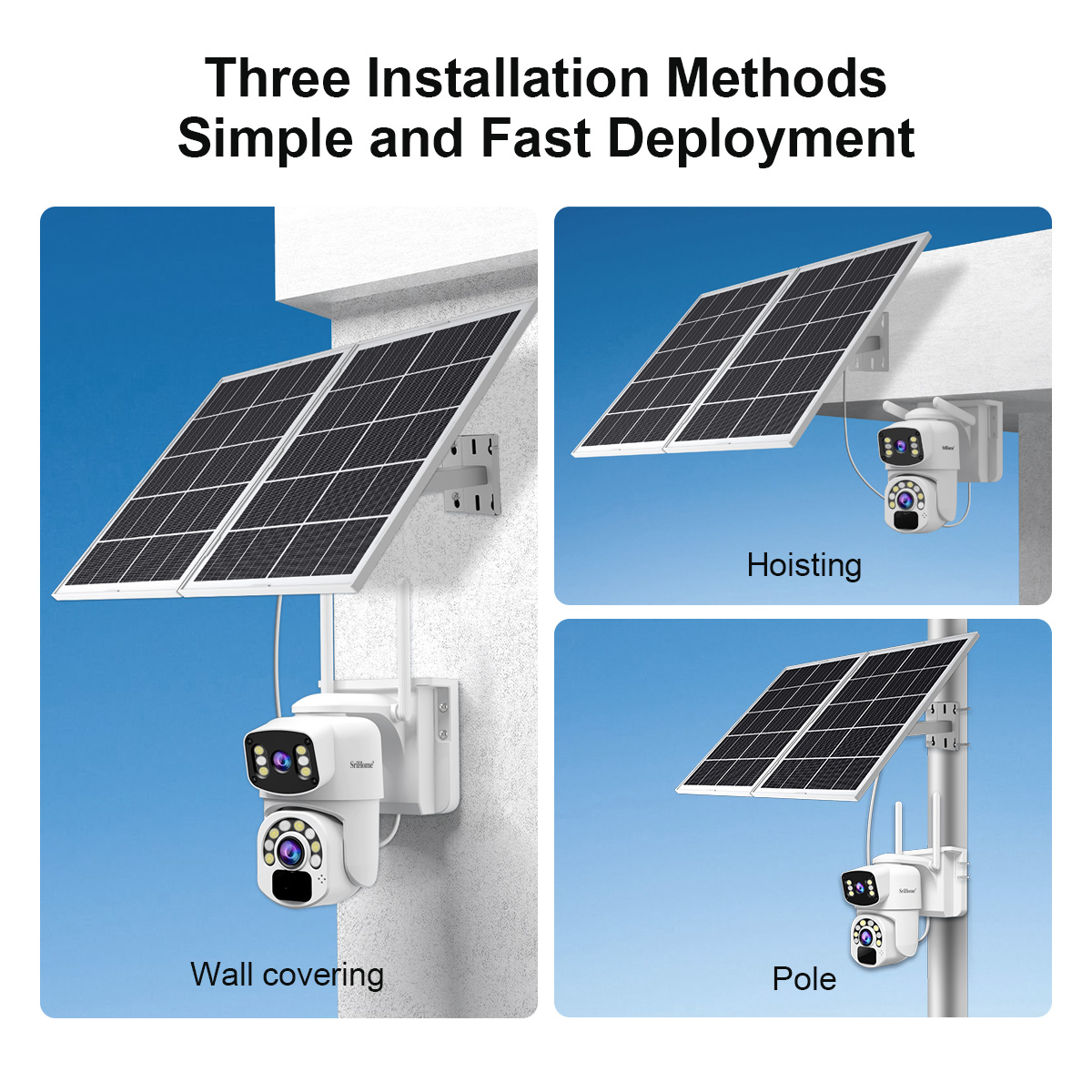

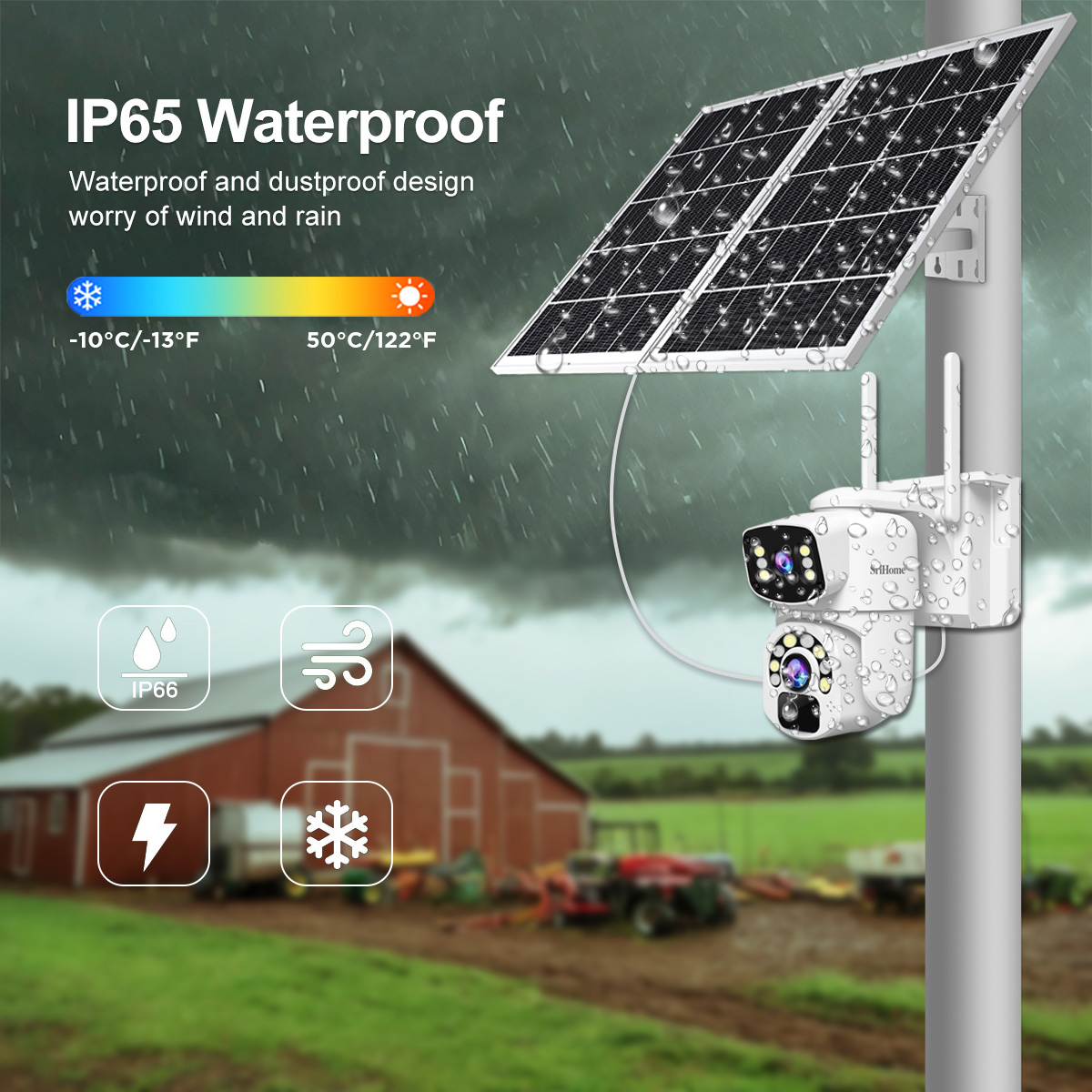

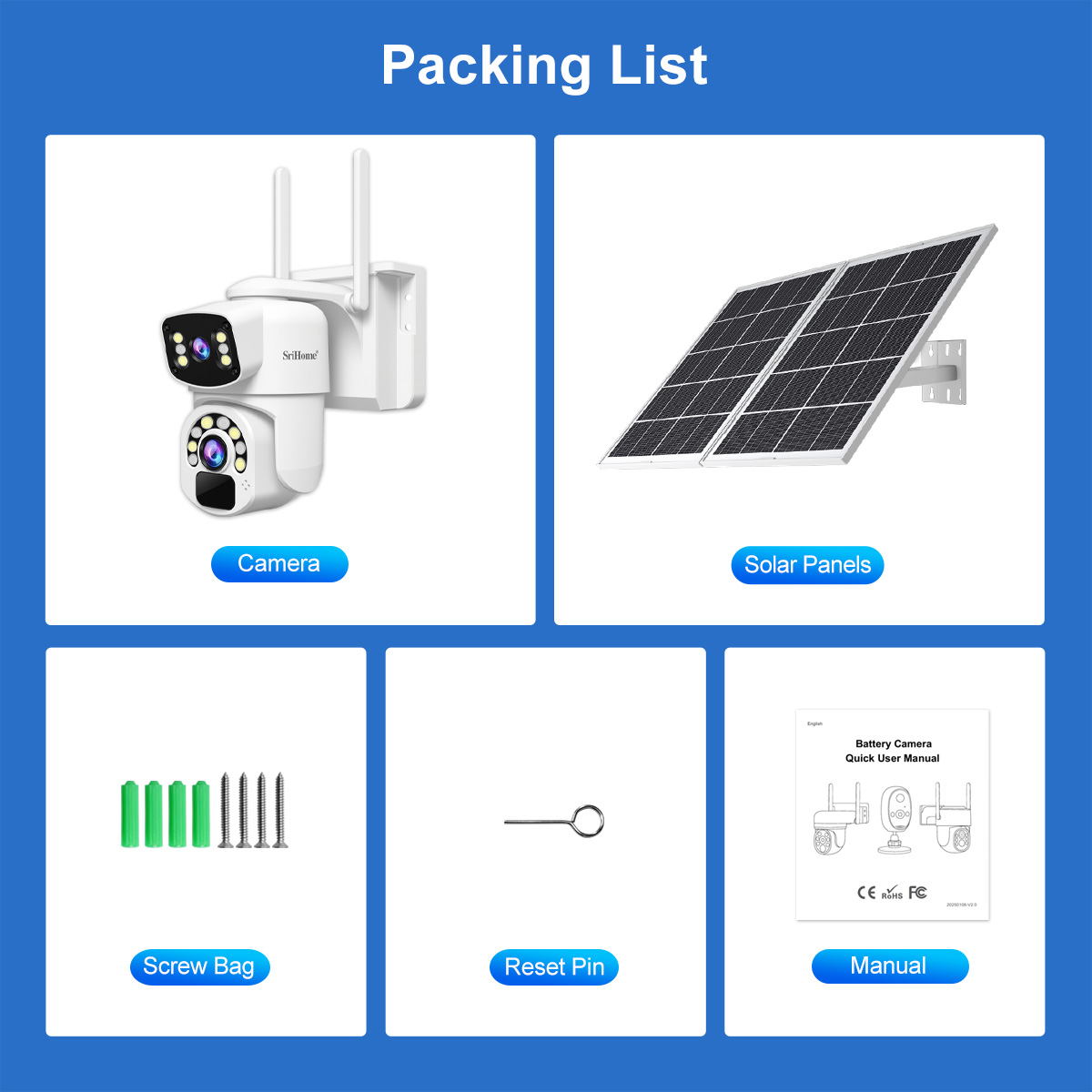

Product type：Battery camera Power interface：Type C DC12V Battery specification：8*18650 Battery 10400mA Working temperature：Minus 10℃ ~50℃ Waterproof degree：IP65 Working humidity：10%－90% RH Power consumption：Working power consumption1.5~5W(daytime1.5W) Standby power consumption <0.003W Size：Product size：182mm x 94mm x 170mm（L*W*H） Color box size：315mm x 230mm x 155mm（L*W*H） Weight：Net Weight:735g, Gross Weight:2380g (Based on actual weight) Accessories：1*Bracket,1*Instruction manual,Wooden screw, 1*Card pick pin, 2*12W Solar pannel |
| Certification | Certification：CE, FCC, RoHS |
