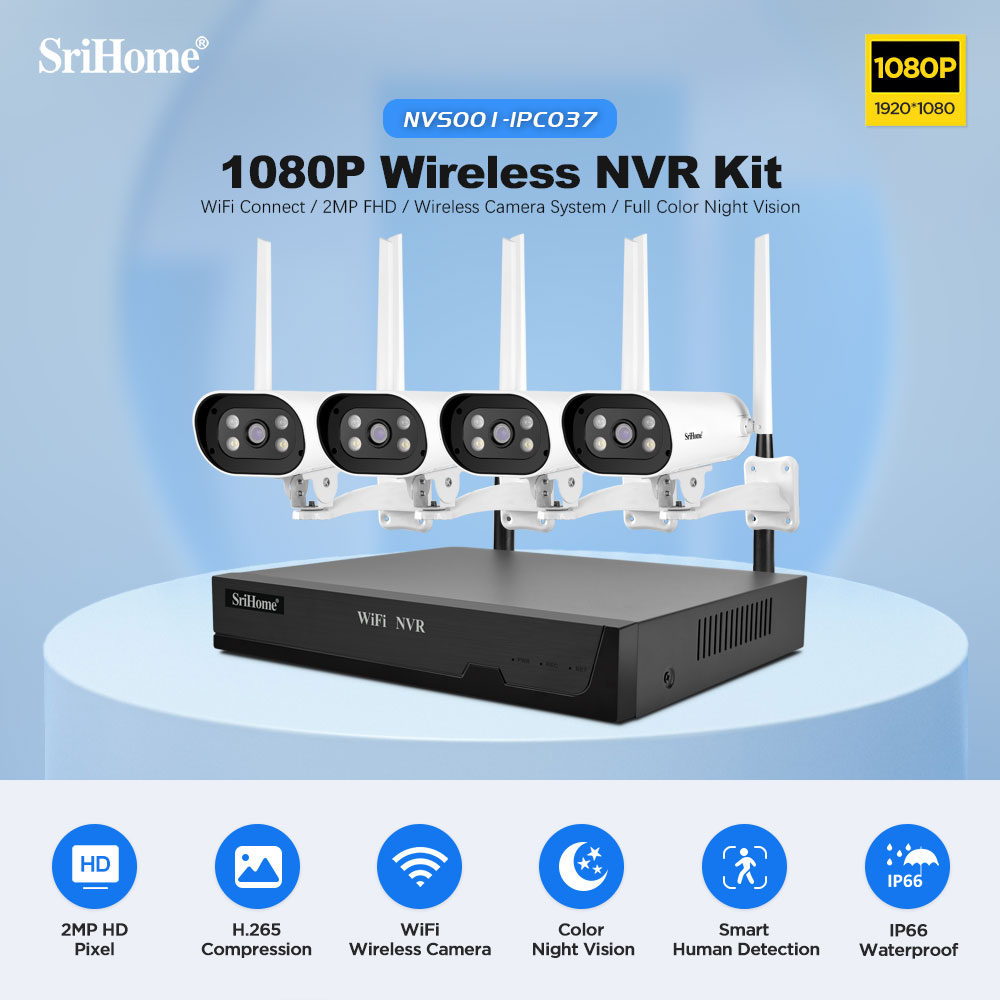

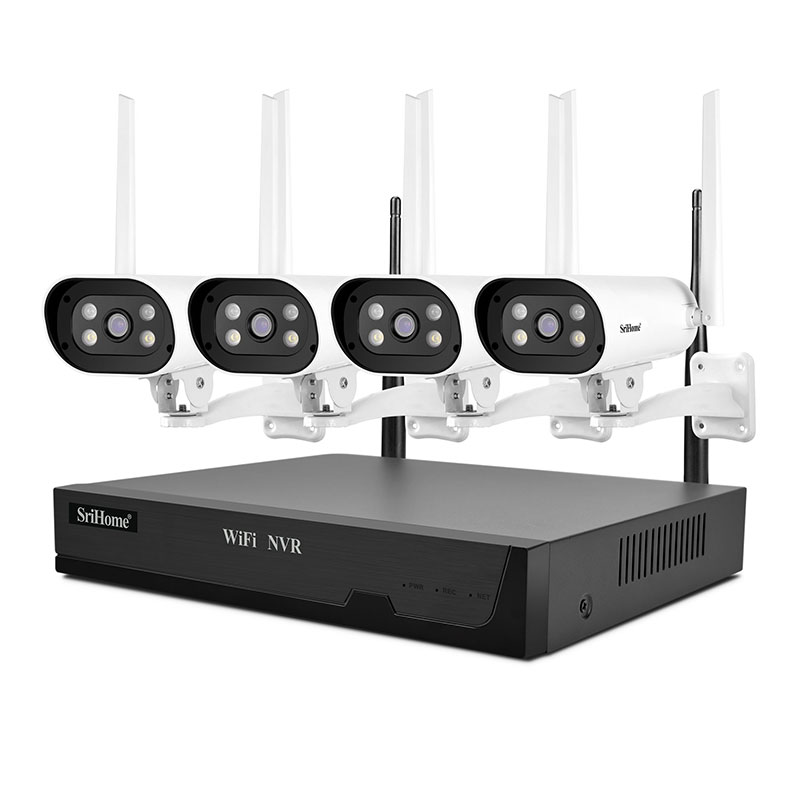

SriHome 1080P 8CH Wireless NVR Kit support 4G NANO SIM Card001002003004005006

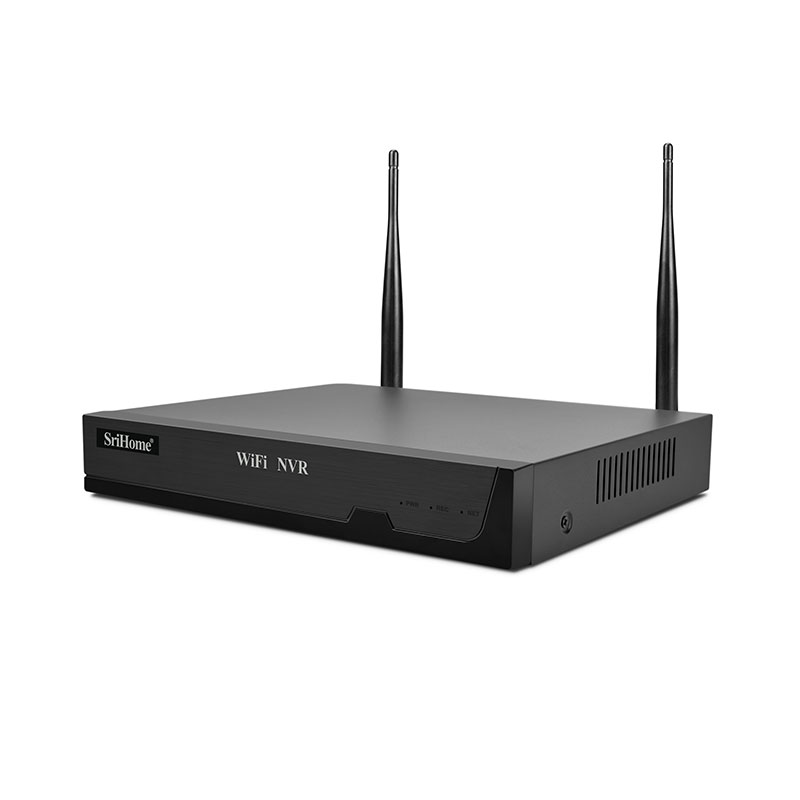

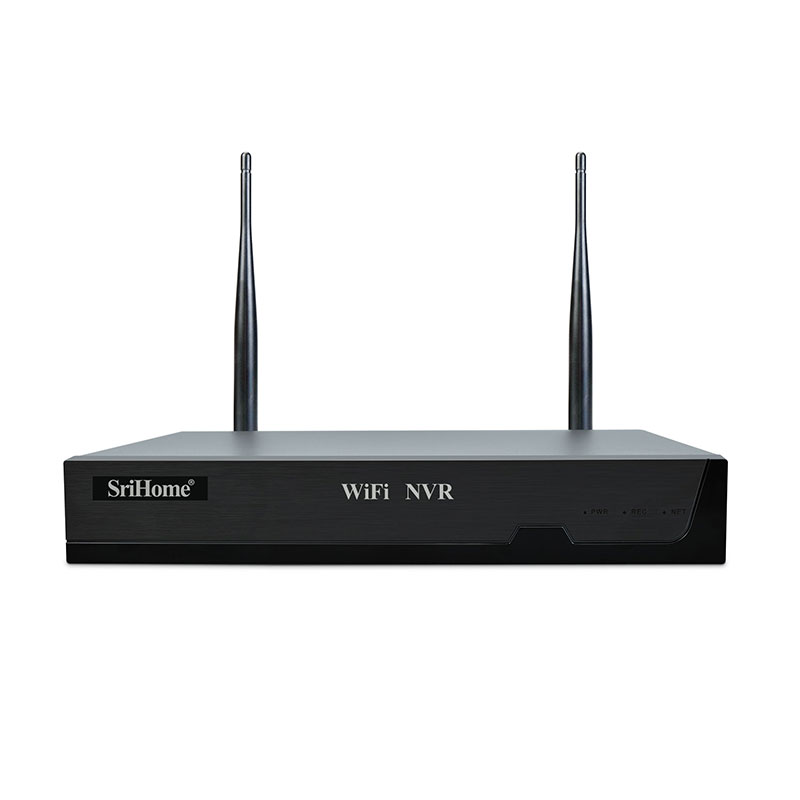

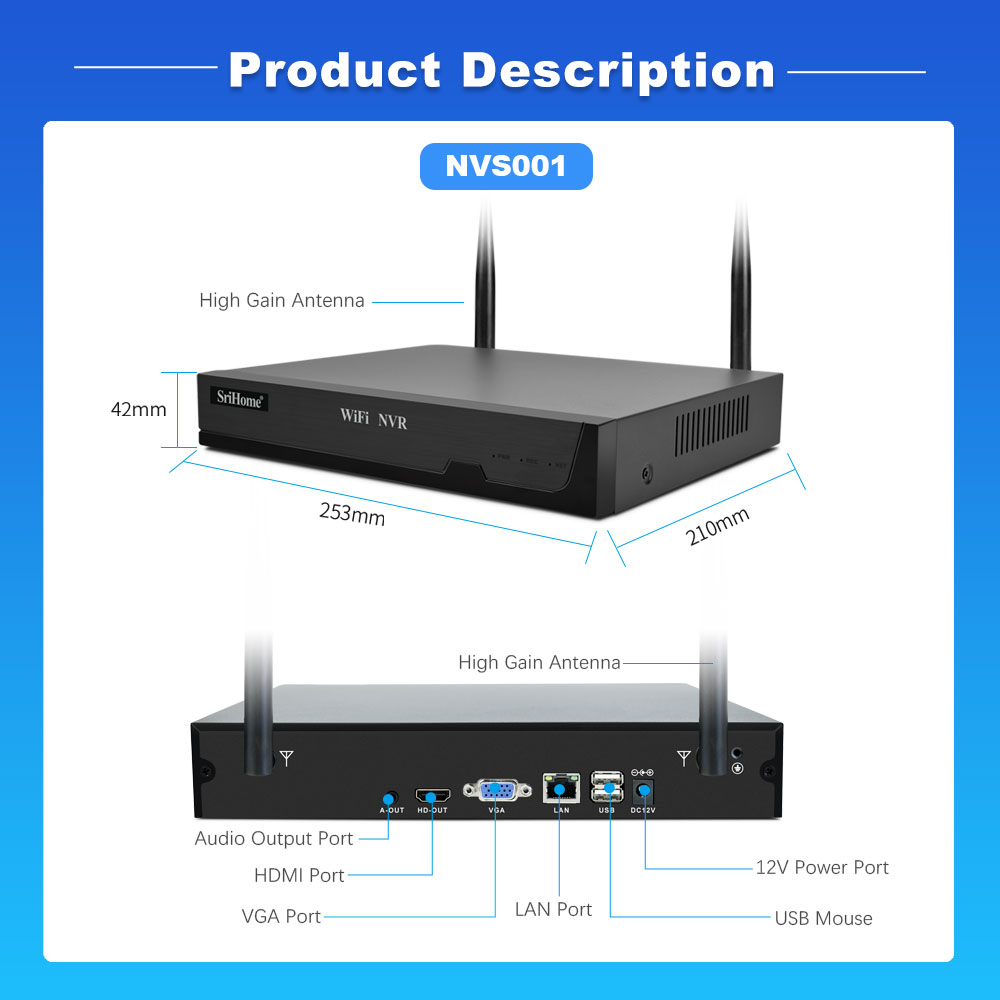

NVS001B Host
Video

Video Input:8 Channel

Video Resolution:1080P(1920x1080), VGA(640x360)

Video Output:1ch HDMI(4K), 1ch VGA(1080P)

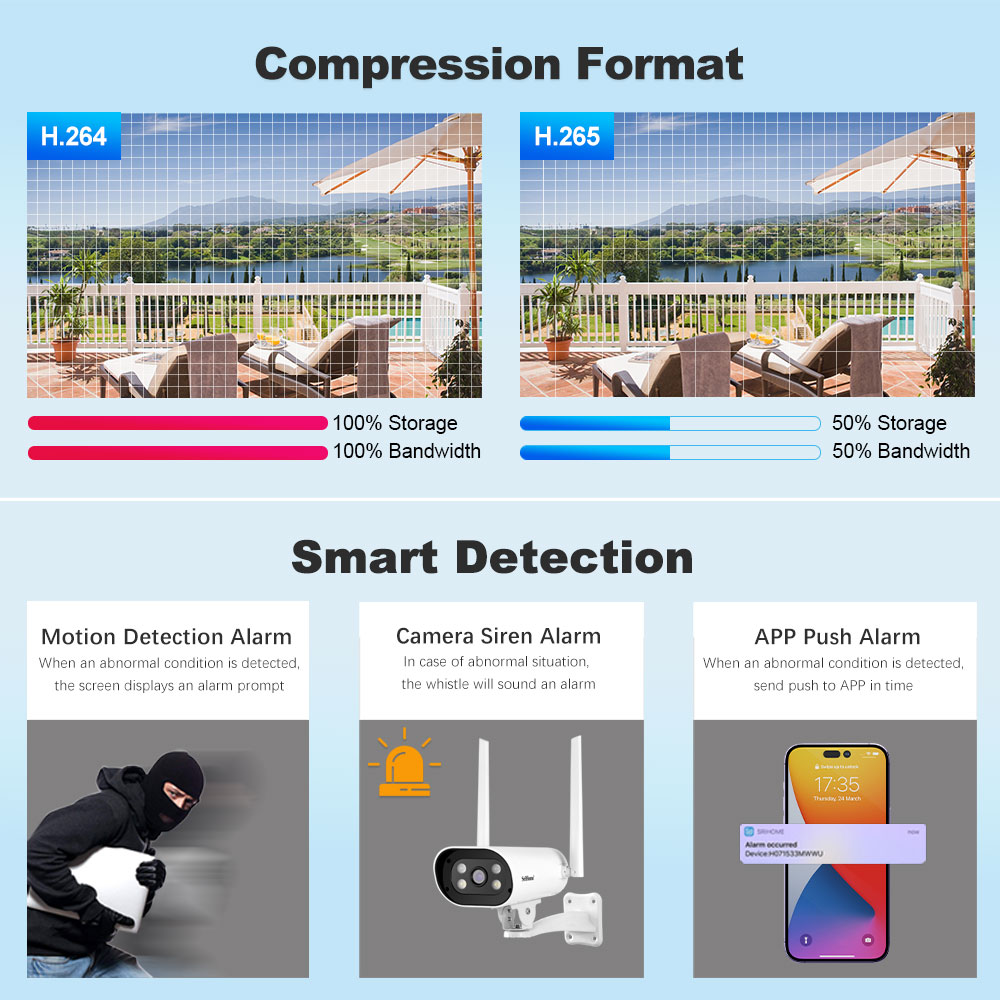

Compression Format:H265/H264

Coding Capacity:8*1080P/25fps

Decoding Capacity:1*1080P/25fps(Main stream); 8*D1/25fps(Sub stream)

Video Decoding Format:H265; H.264;

Audio

Audio:One-way

Audio Output:HDMI and 1ch AUX interface audio output

Audio Decoding Format:G.711U; AAC

HDD

Internal HDD:1* SATA Port

Capacity:Up to 8 TB capacity

Recording /Playback

Recording:Manual Recording, Timed Recording, Event Recording, Alarm Recording(motion detection,humanoid detection )

Playback:Instant playback, Regular playback, Event playback,Tag playback, External file playback, Log playback

Backup Modes:Regular backup, Event backup, Video backup

Network

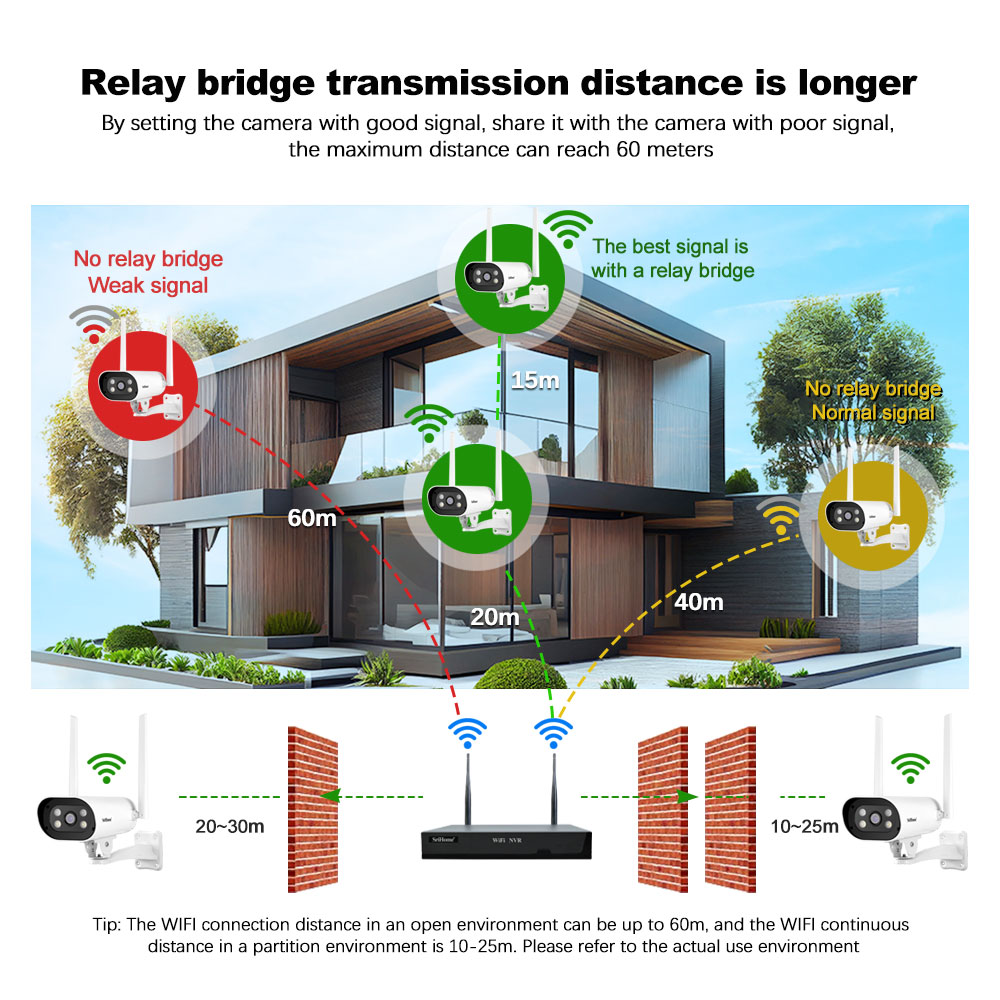

WiFi:2.4G WiFi, Connected SriHome standard configuration cameras only

Networking mode:Support 4G LTE only

Optional 4G band(Confirm before order):FDD LTE:B1/B3/B5/B8/;  TDD LTE:B34/B38/B39/B40/B41; WCDMA:B1/B5/B8;FDD LTE:B1/B3/B5/B7/B8/B20/B28; TDD LTE:B38/B40/B41; WCDMA:B1/B5/B8;FDD LTE:B1/B2/B3/B4/B5/B7/B8/B12/B17B28/B66; TDD LTE:B38/B40/B41; WCDMA:B1/B2/B4/B5/B8

Alarm

Alarm Model:Motion Detection Alarm, Video Loss Alarm, Video Occlusion Alarm

Alarm Reminder:Screen Tips, APP Push

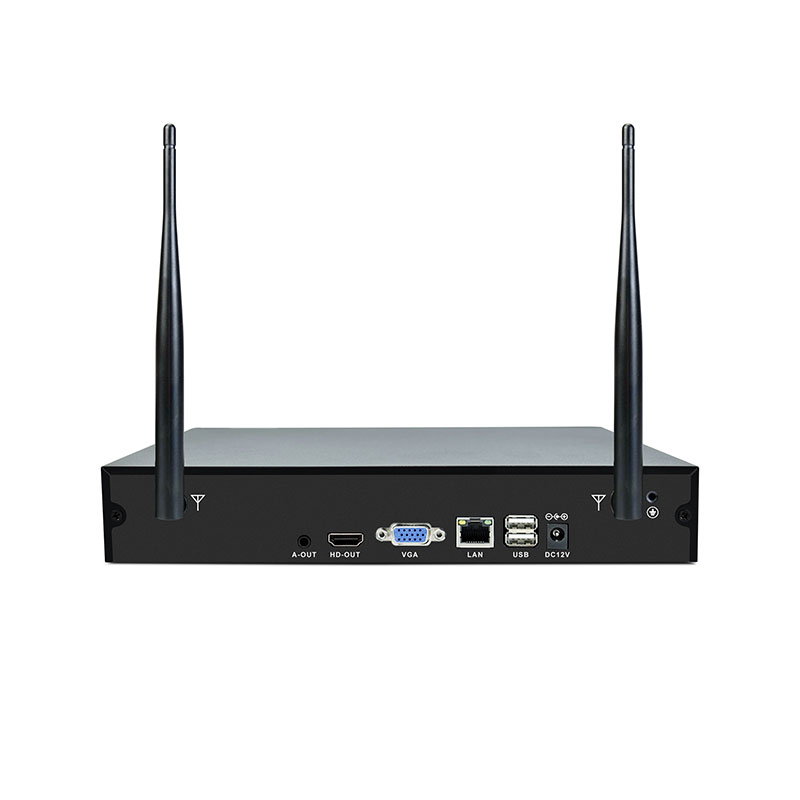

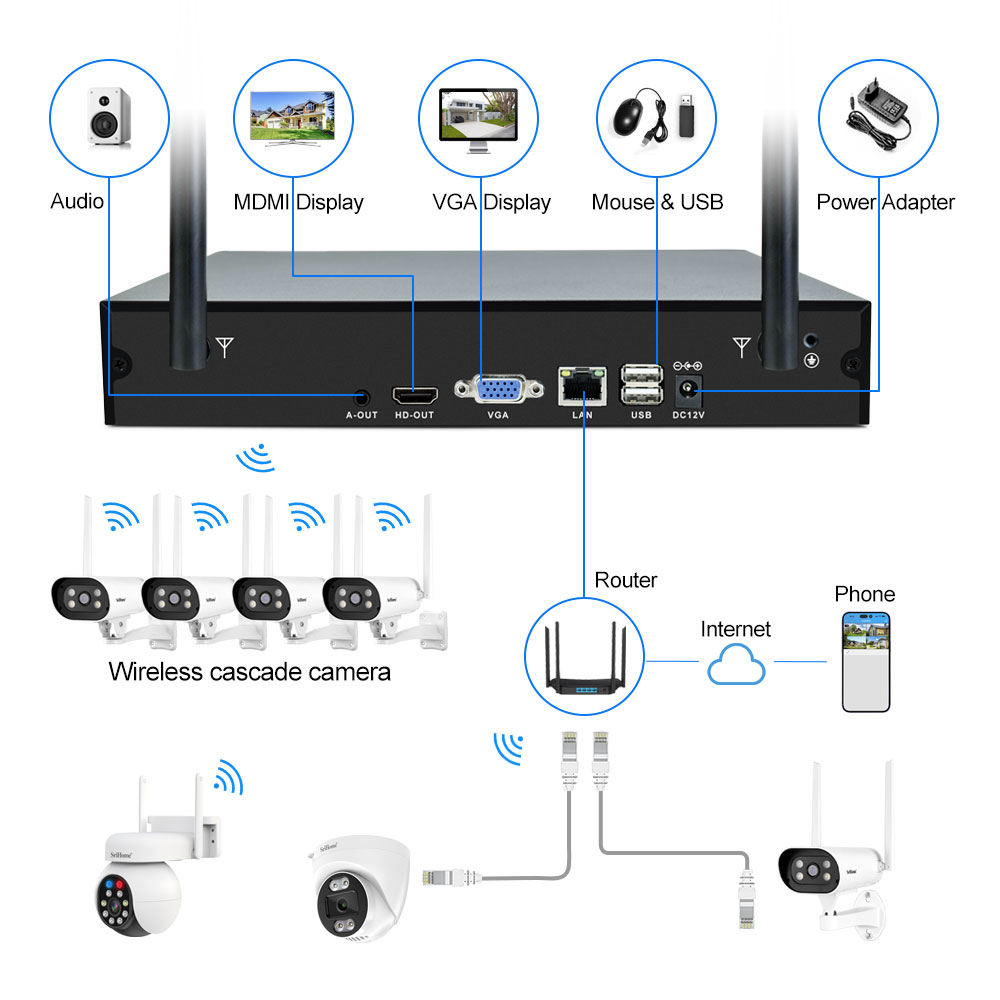

External interface

HDMI Interface:1

VGA Interface:1

USB  Interface:1*USB2.0

4G card Solt:NANO SIM (Need to open the cover)

Audio Interface:1*AUX audio output port

Power Interface:1*DC 12V 2A (5.5*2.1*10 )

Others

Working Temperature:-10°C ~50°C

Working Humidity:10%~90% RH

APP SriHome APP, iOS & Android Smartphone remote access
Certification CE, FCC, RoHS

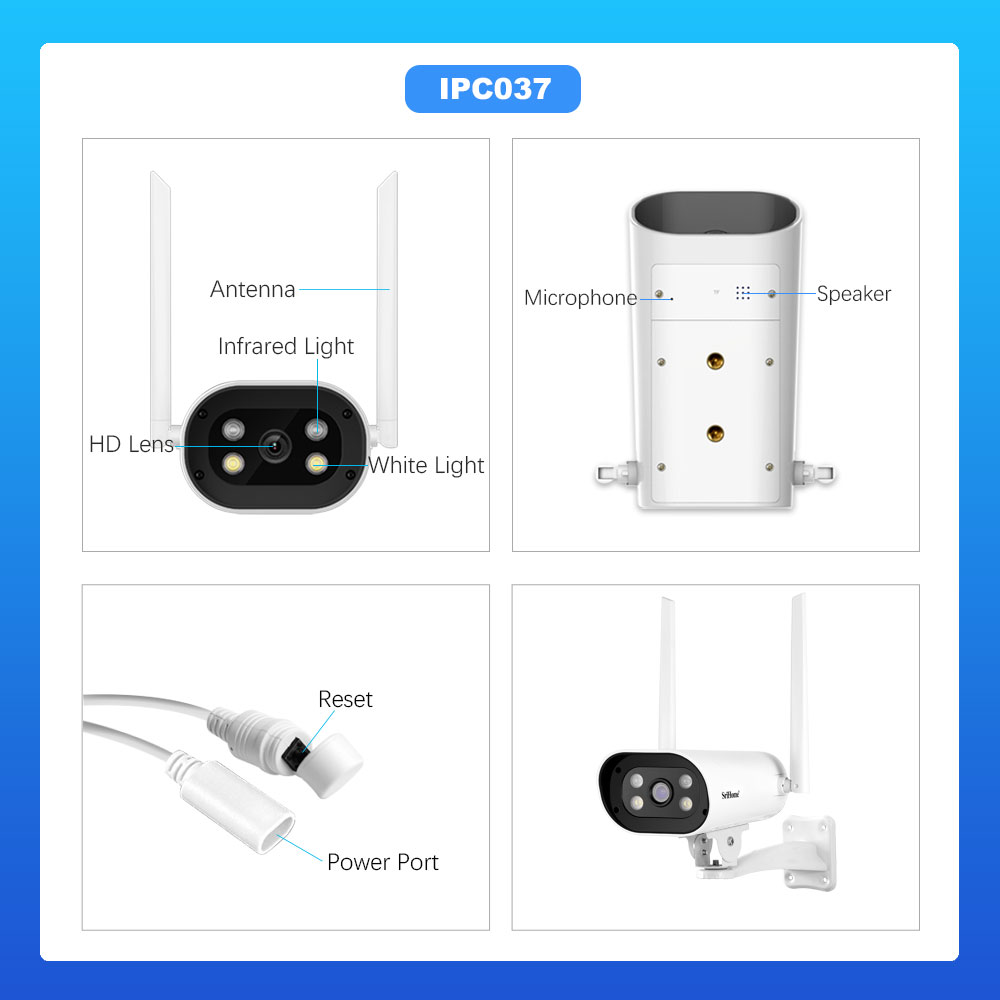

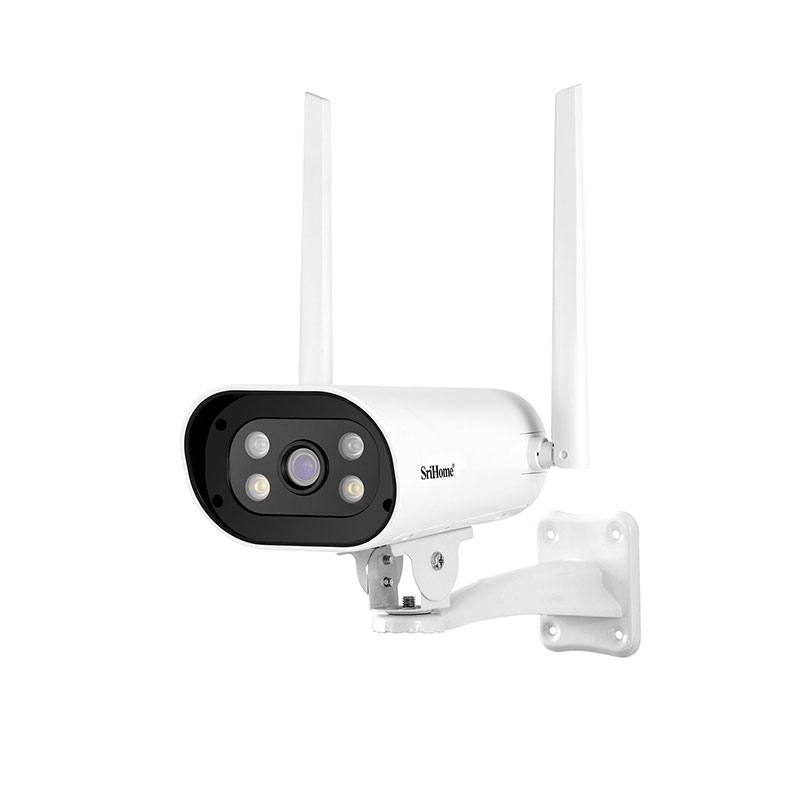

Standard Cameras Specification
Camera Model:NVS001B-IPC024
Features Connected with NVS001-4G NVR only
System

Main processor:ARM11

Sensor:1/2.7 inch, 2MP high-definition color CMOS sensor

Image Compression:H.265

Lens

Lens Parameter:Focal length: 4mm, 2MP lens

Angle of View:Pan: 73°,  Tilt: 53.6°,  Diagonal: 95.2°

Video

Resolution:1080P(1920x1080), VGA(640x360)

Image Frame Rate:(15 - 25fps) adaptive

Automatic Exposure:Adjust the image automatically to view clearly

Night ision:High-power infrared light, high-definition night vision

Min.Illuminatioin:0.01 Lux / F1.2

IR-Cut:Built-in IR-Cut, no color cast indoors and outdoors, highly sensitive night vision

Audio Built-in Mic, Support one-way audio remotely
Others

Product Type:Metal bullet camera, for indoor and outdoor

Waterproof degree:IP66

Power Adapter:Input AC: 100~240V, Output DC:12V/1A

Product Weight:N.W.:275g

Dimensions:Item size: 100* 65* 65mm  (LxWxH)

Kit Specification

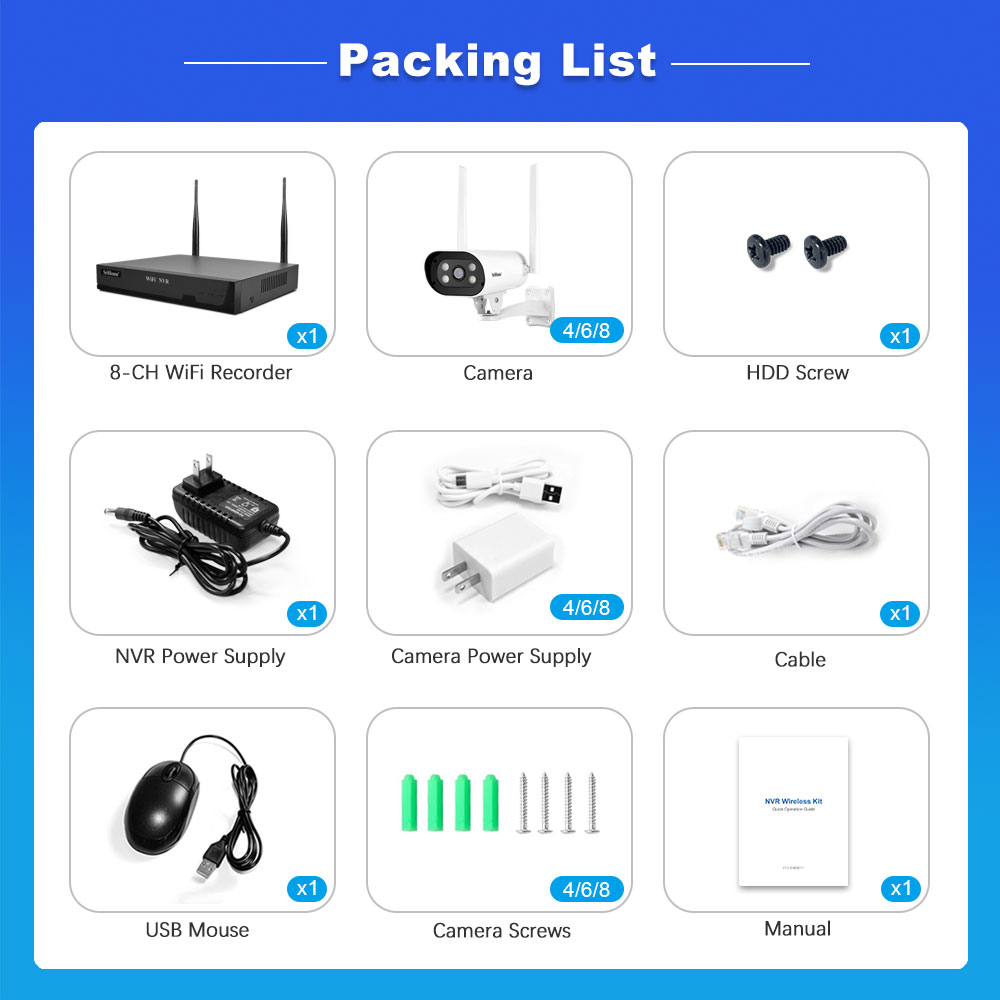

Kit Accessories

NVR:1

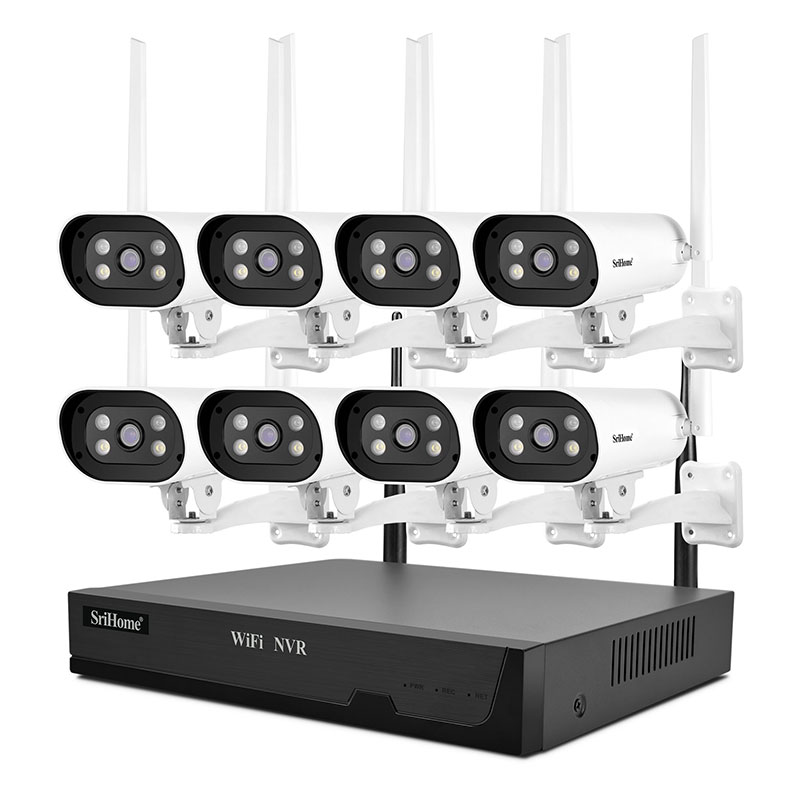

Camera:4*wireless cameras (Optional 8 wireless cameras)

Power Adapter:1*12V 3A , 4*12V 500mA

Screw Pack:5

User manual:1

Network Cable:1

Antenna:4

Kit Packing

Kit Weight:2.7kg,Subject to actual weight

Kit Size:30.7x30x13.6cm(LxWxH)
