Video Input: 16 channels, 5MP

Video Output: HDMI (5MP) / VGA (1080P)

Compression Format: H.265

Encoding Capability: 16*5M/25fps

Decoding Capability: 1*5M/25 (main stream); 16*D1/25 (secondary stream)

Video Decoding Format: H.264/H.265

Audio input: Supported

Audio output: HDMI

Audio decoding format: G711U

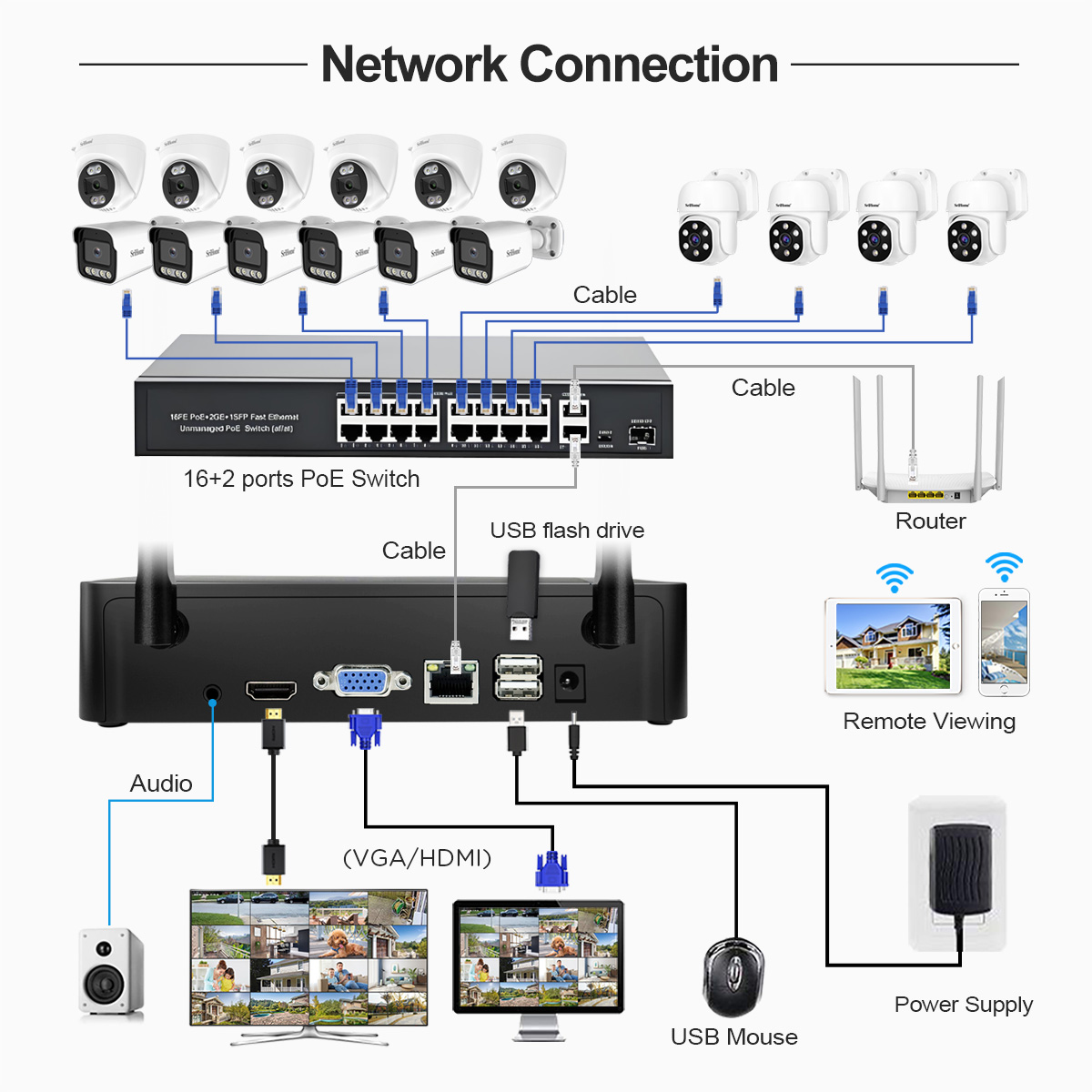

Network port: 10/100 Mbps Ethernet (RJ-45)

protocol: Onvif,netip,npts,TCP/IP, DHCP, DDNS, NTP, SMTP

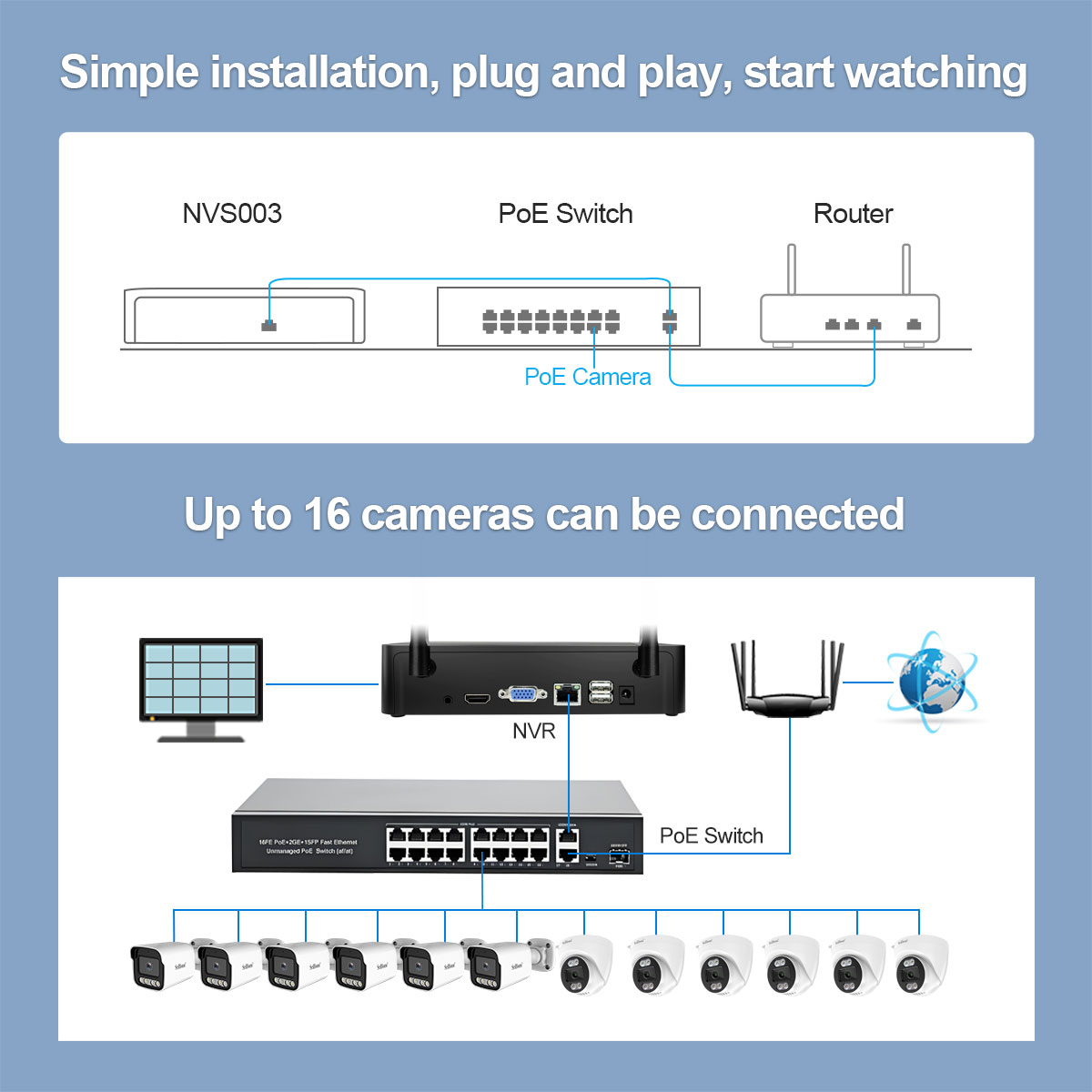

WAN: RJ45 connection, supports remote viewing of 16 monitoring channels simultaneously via APP.

Network services: Supports DHCP, PPPoE, FTP, DNS, DDNS, NTP, UPnP, etc.

Type: 1 SATA interface

Capacity: Supports up to 16TB

Video recording: Scheduled recording, event recording, no recording

Playback: Date selection, time segment, fast forward/rewind

Video backup: Supports backup (external hard drive, USB flash drive)

Alarm methods: motion detection, human recognition, human tagging,

Alarm notification: Supports siren alarm sound and app push notifications.

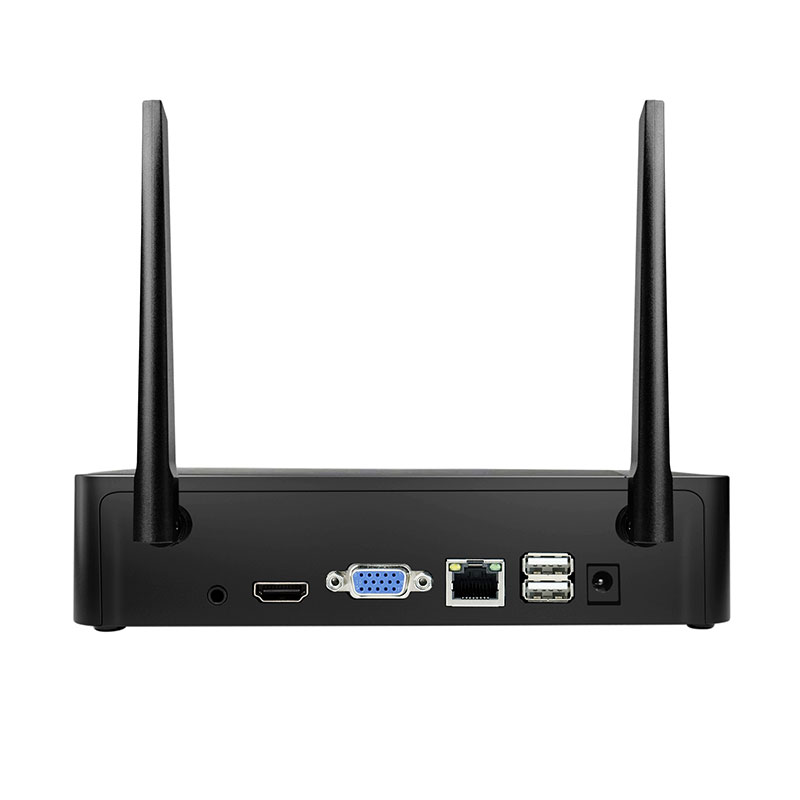

Network interface: 1 RJ45

USB ports: 2 USB 2.0 ports

HDMI port: 1

VGA interface: 1

Power interface: 1 DC 12V 2A 5.5*2.1*10 (DC12V)

Product Type: Hard Disk Network Video Recorder, Indoor Use

Operating temperature:  -10°C ~50°C

Operating humidity:  10%~90% RH

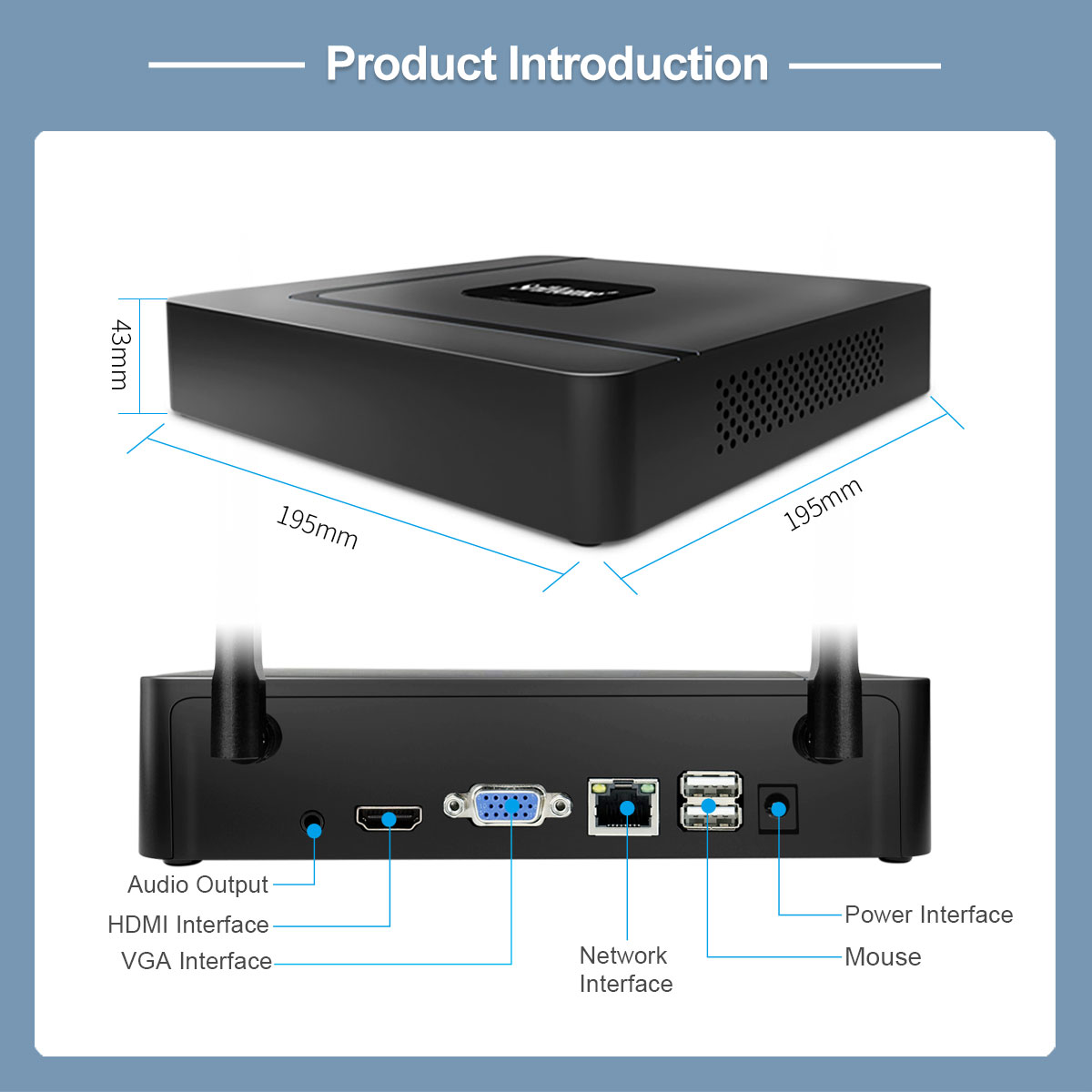

Product size:  195mm*195mm*43mm

Power supply: 12V 2A

Weight: 0.4KG, subject to the actual product.

Package accessories: power supply, instruction manual, network cable, hard drive screws

Packaging size: 272mm*206mm*51mm; Weight: 0.7KG

CE， FCC， RoHS
