NVS005 (PoE NVR)

1. Support SriHome App, one-key configuration to access the Internet

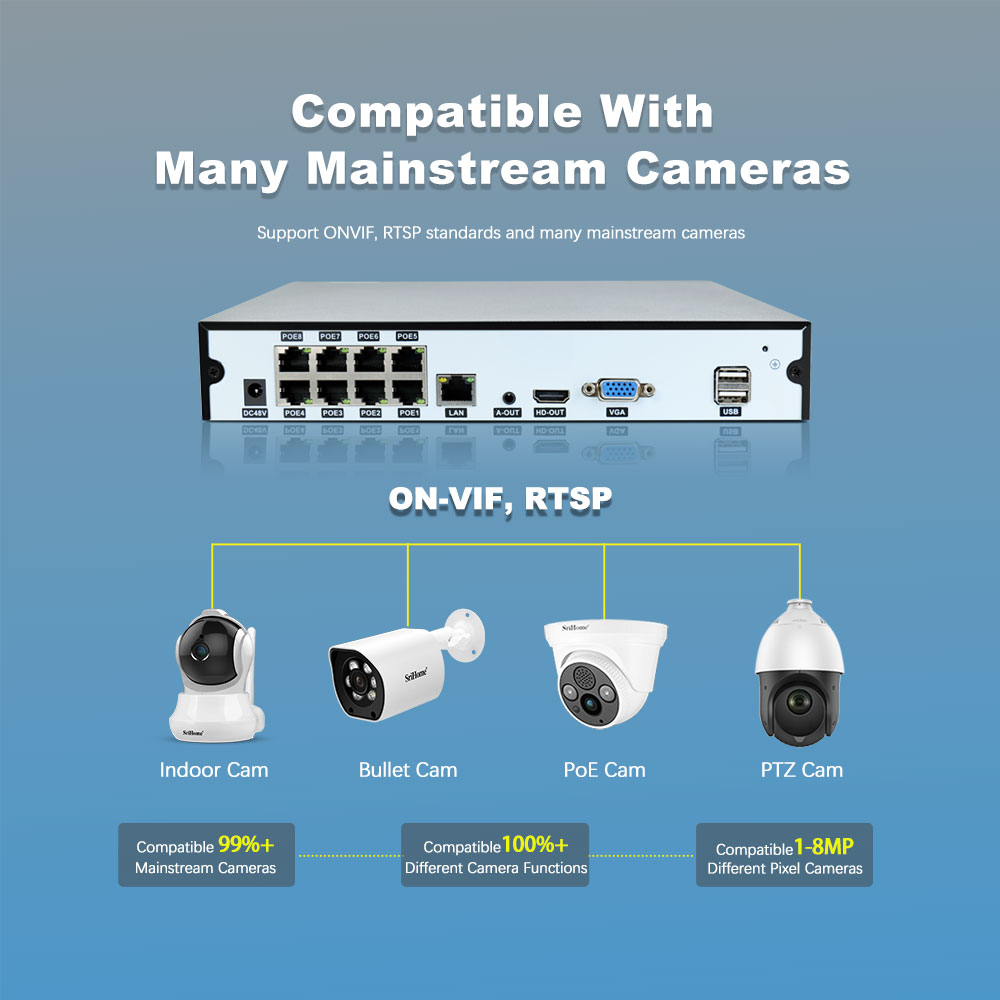

2. Can be connected to onvif, RTSP standards IP cameras of many mainstream manufacturers
3. Up to support 8MP HD network camera preview, storage and playback
4. Support H.265, H.264 encoding front-end self-access
5. Support IPC centralized management, including IPC parameter configuration
6. Support HDMI and VGA homologous output, HDMI 4K output, VGA 1080p output
7. Support one-click to add IP device and one-click to open the recording function
8. Support intelligent search, playback and backup functions, effectively improve the efficiency of video retrieval and playback
9. Support real-time playback function, support up to 8-ch of synchronous playback and synchronous reverse playback
10. Built-in 8 PoE network ports, support IPC direct connection for power supply and image display
11. Support PC browser monitoring: IE
12. Support USB external storage device, which is convenient for video file export/backup

Audio	Audio：One-way Audio Output：HDMI and 1ch AUX interface audio output Audio Decoding Format：G711U; AAC
HDD	Internal HDD：1* SATA Port Capacity：Up to 8 TB capacity
Recording/Playback	Recording：Manual Recording, Timed Recording, Event Recording, Alarm Recording(motion detection,humanoid detection ) Playback：Instant playback,Regular playback,Event playback,Tag playback, External file playback, Log playback Backup Modes：Regular backup, Event backup, Video backup
Network	Ethernet Port：10 / 100 Mbps Ethernet (RJ-45) Protocol：Onvif, netip, npts, TCP/IP, DHCP, DDNS, NTP, SMTP WAN：RJ45 Connection , support 16CH remotely monitoring view via SriHome APP Network Function：Support DHCP,PPPOE,FTP,DNS,DDNS,NTP, UPNP,Email etc.
Alarm	Model：Motion Detection Alarm, Video Loss Alarm, Video Occlusion Alarm Trigger Events：Screen Tips, APP Push

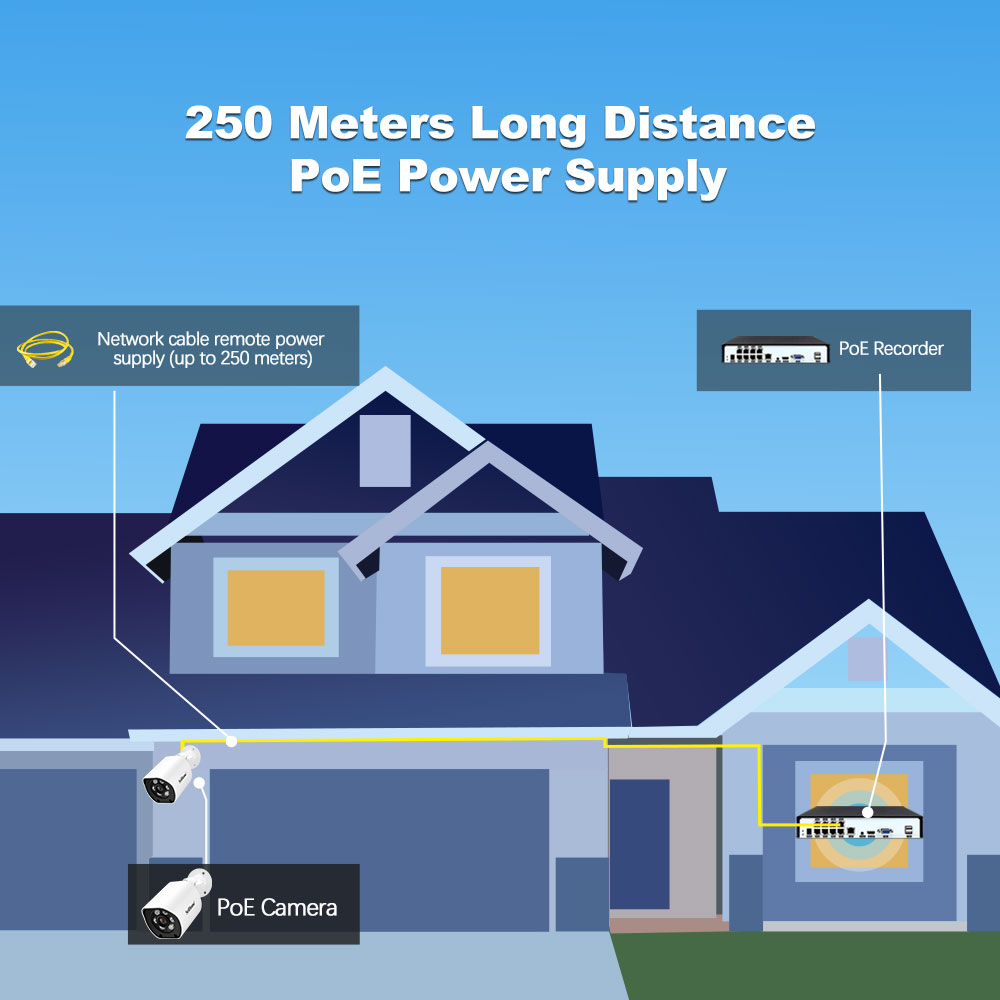

PoE	PoE Interface：8 10M / 100M RJ45 PoE Power Supply Ports PoE Standard：IEEE 802.3af/at PoE Output Power：<35W Note：Automatic AI detection/supports super long-distance two-speed combination mode, which is not turned on by default (you need to dial to the ON position by yourself, and the indicator light is on) 1 cat5 reaches 100M in default mode 2 cat6 can reach up to 250M when the ultra-long distance mode is turned on

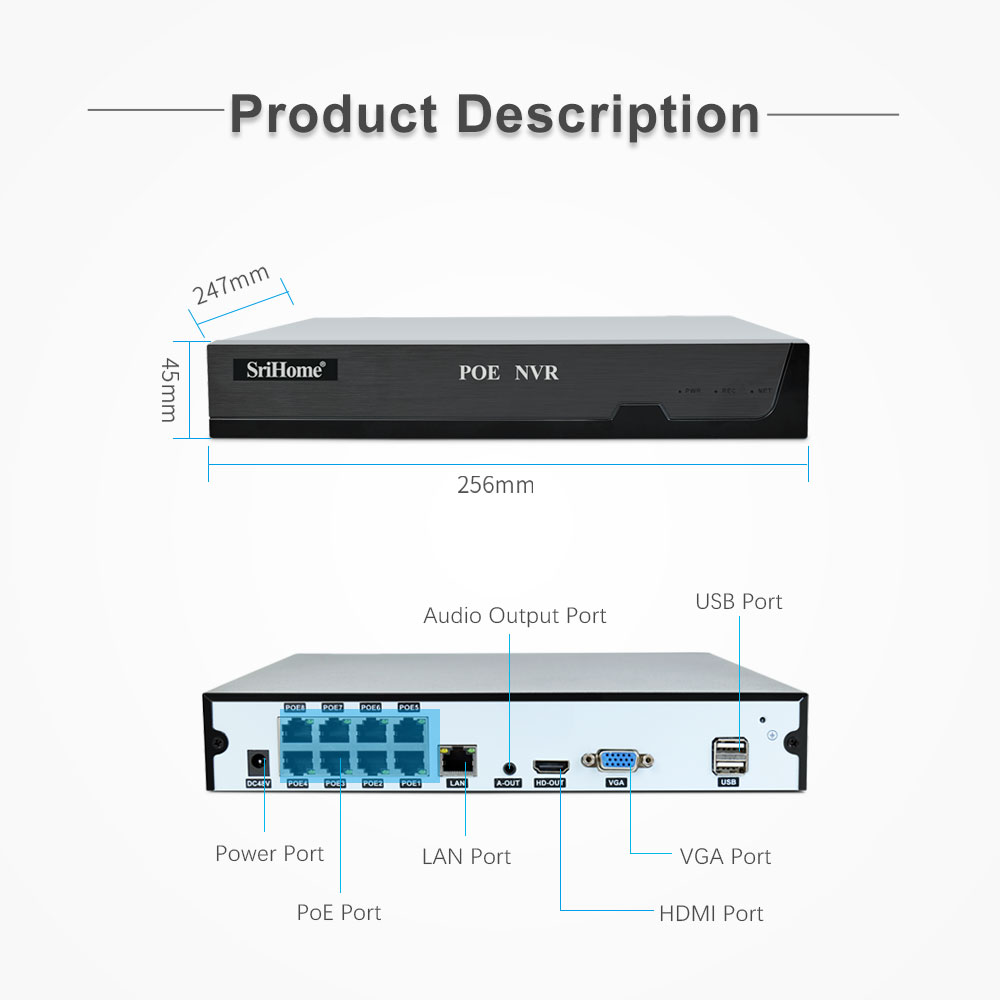

External interface	Network Interface：RJ45: 11000M uplink interface, 810M/100M RJ45 ports USB Interface：2USB2.0 HDMI Interface：1 VGA Interface：1 Audio Interface：1 AUX audio output port Power Interface：1 DC 48V~56V (5.52.110 )
General	Working Temperature：-10°C ~50°C Working Humidity：10%~90% RH Dimensions(W×D×H)：34028275mm Weight：N.W.:690g, G.W:1.372kg (Note:Actual Weight Final)
APP	SriHome APP, IOS & Android Smartphone
Browser	Support Local Access Using Standard IE Browser
